10GBase-T Pulse Transformer
  • 10GBase-T Pulse Transformer - 0 10GBase-T Pulse Transformer - 0

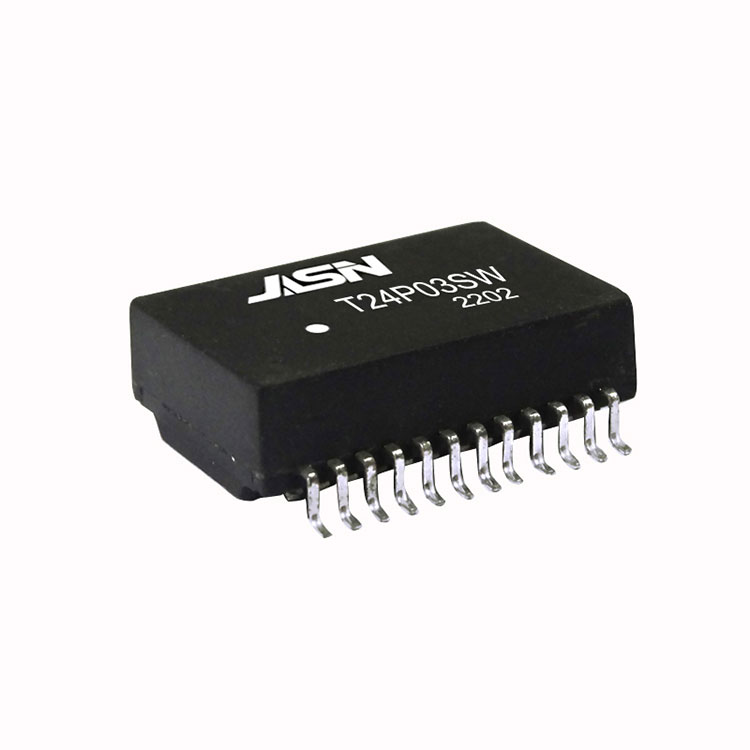

10GBase-T Pulse Transformer

You are welcomed to come to JASN factory to buy the latest selling, low price, and high-quality 10GBase-T Pulse Transformer. We look forward to cooperating with you. T24P03SW is of operating temperature range: -40℃ to +85℃.

Model:T24P03SW

Model:T24P03SW

Send Inquiry

PDF DownLoad

As a professional high quality 10GBase-T Pulse Transformer manufacturer, you can rest assured to buy 10GBase-T Pulse Transformer from JASN factory and we will offer you the best after-sale service and timely delivery.


Feature


Comply with IEEE802.3an
Comply with RoHS requirements.
Operating temperature range: -40℃ to +85℃.
Storage temperature range: -40℃ to +105℃.


Electrical Specifications @ 25℃



OCL:

150uH Min. @100KHz/0.1V

Hi-POT :

1500Vrms

Turn Ratio:

1:1±3%

LK:

0.5uH Max @100KHz/0.2V

Cw/w

18PF Max @100KHz/0.2V

D.C.R:

0.6 ohm Max



Insertion Loss:

1-200MHz

200-400MHz

400-500MHz

-1dB Max

-2dB Max

-3dB Max

Cross Talk :

1-500MHz: -30dB Min



Return Loss:

1-200MHz

200-300MHz

300-400MHz

400-500MHz

-16dB Min

-14dB Min

-11dB Min

-9dB Min
