10GBase-T Network Transformer

Jansum Electronics is China manufacturer & supplier who mainly produces 10GBase-T Network Transformer with many years of experience. T24C03SP meets IEEE 802.3an and supports PoE application.

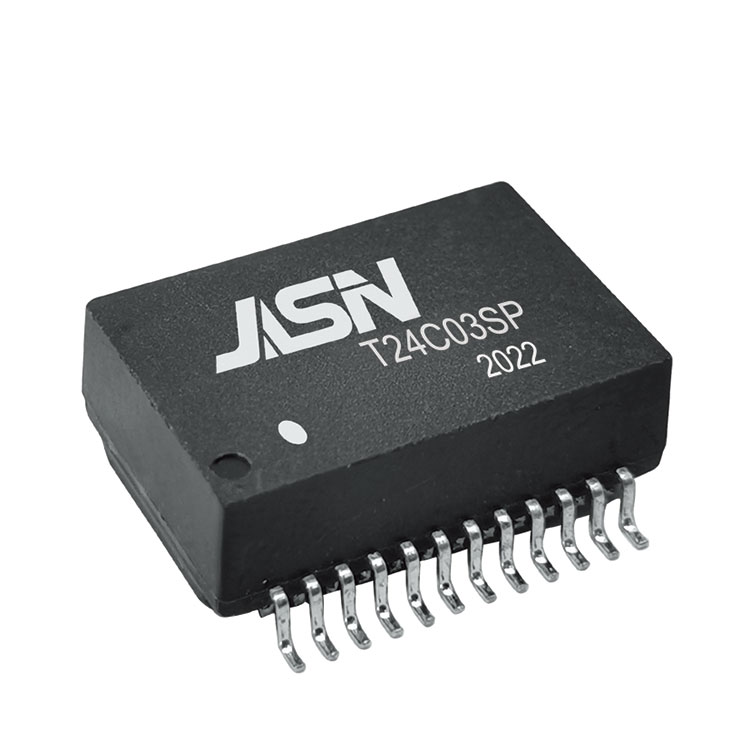

Model:T24C03SP

Model:T24C03SP

Send Inquiry

PDF DownLoad

JASN 10GBase-T Network Transformer have characteristic design & practical performance & competitive price, for more information on the 10GBase-T Network Transformer, please feel free to contact us.


Feature


Comply with RoHS requirements.
Comply with IEEE802.3an&802.3at.
Suitable for End-span PoE applications with 720mA current capability
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.


Electrical Specifications @ 25℃



OCL:

120uH Min. @100KHz/0.1V with 10.8mA DC Bias

Hi-Pot :

1500Vrms

Turns Ratio:

1CT:1CT±3%

D.C.R:

1.0 ohm Max



Insertion Loss:

-1.5dB Max@1-250MHz

-3.0dB Max@250-500MHz



Return Loss

-16dB Min@1-40MHz

-16+10log(f/40)dB Min@40-500MHz



Crosstalk

-35dB Min@1-100MHz

-30dB Min@100-500MHz



CMRR

-30dB Min@1-250MHz

-20dB Min@250-500MHz
