10GBase-T Ethernet Transformer

10GBase-T Ethernet Transformer

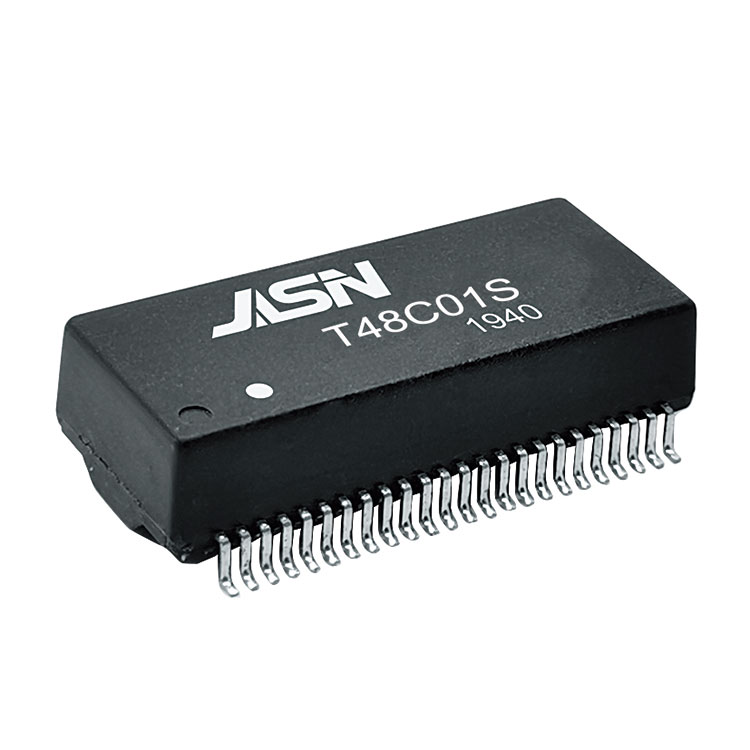

You can rest assured to buy 10GBase-T Ethernet Transformer from JASN factory and we will offer you the best after-sale service and timely delivery. The PN T48C01S provide 10G speed rate and has SMD package.

Model:T48C01S

Model:T48C01S

Send Inquiry

PDF DownLoad

Product Description

You can rest assured to buy customized 10GBase-T Ethernet Transformer from JASN. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

Feature

Comply with RoHS requirements.
Comply with IEEE802.3an
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.

Electrical Specifications @ 25℃

OCL:	120uH Min. @100KHz/0.1V
Hi-Pot :	1500Vrms
Turns Ratio:	1CT:1CT±3%
D.C.R:	1.0 ohm Max
Insertion Loss:	-1.5dB Max@1-250MHz
Insertion Loss:	-3.0dB Max@250-500MHz
Return Loss	-16dB Min@1-40MHz
Return Loss	-16+10log(f/40)dB Min@40-500MHz
Crosstalk	-35dB Min@1-100MHz
Crosstalk	-30dB Min@100-500MHz
CMRR	-30dB Min@1-250MHz
CMRR	-20dB Min@250-500MHz
