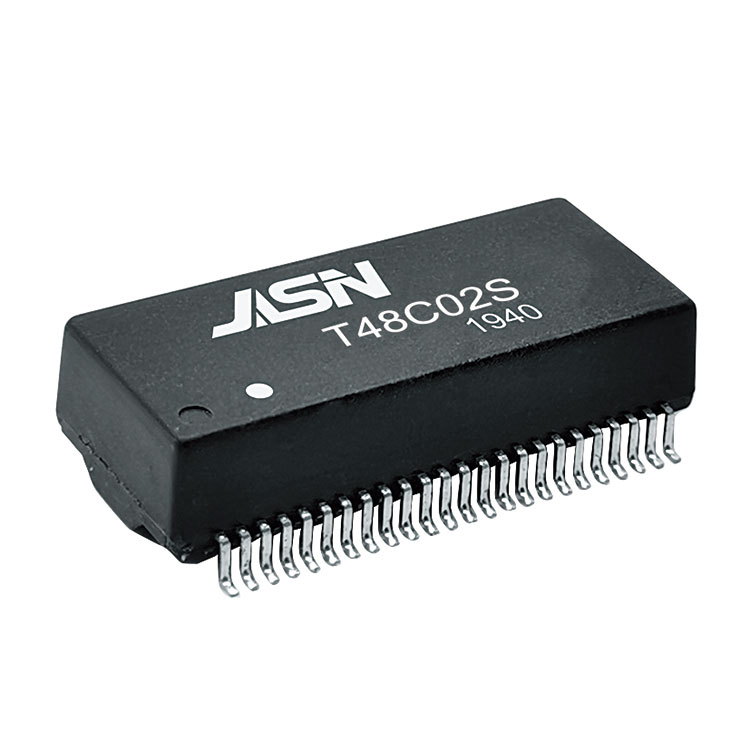

10GBase-T Discrete Lan Magnetics

JASN as a professional Pulse transformer manufacturer, you can rest assured to buy 10GBase-T Discrete Lan Magnetics from our factory and we will offer you the best after-sale service and timely delivery. PN T48C02S is designed to meet IEEE802.3an and comliant with RoHS requirement.

Model:T48C02S

Model:T48C02S

Send Inquiry

PDF DownLoad

JASN is a professional leader China 10GBase-T Discrete Lan Magnetics manufacturer with high quality and reasonable price. Welcome to contact us.


Feature


Comply with RoHS requirements.
Comply with IEEE802.3an
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.


Electrical Specifications @ 25℃



OCL:

120uH Min. @100KHz/0.1V

Hi-Pot :

1500Vrms

Turns Ratio:

1CT:1CT±3%

D.C.R:

1.0 ohm Max



Insertion Loss:

-1.5dB Max@1-250MHz

-3.0dB Max@250-500MHz



Return Loss

-16dB Min@1-40MHz

-16+10log(f/40)dB Min@40-500MHz



Crosstalk

-35dB Min@1-100MHz

-30dB Min@100-500MHz



CMRR

-30dB Min@1-250MHz

-20dB Min@250-500MHz
