10GBase-T Magnetics Modules

10GBase-T Magnetics Modules
Jansum is a leading China 10GBase-T Magnetics Modules manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our 10GBase-T Magnetics Modules have been satisfied by many customers.
Our 10G Base-T product designed to meet IEEE 802.3an standard Compatible with all Major PHYs apply on 10 Giga bits LAN speed RoHS peak reflow temperature 260C, or wave solder process 260+/-5C for 10 Sec. Standard footprint on most PCB space application.
Meet IEEE 802.3AF/AT/BT Standard(Different PoE Parameters).
Jansum’s PoE product portfolio can provide 2P/4P PoE/PoE+/PoE++ capable up to 100W Max.

Part  Number	Product  Figure	Speed  Rate	Number  of Ports	Package	Number  of Pins	Pin  Pitch	PoE  Rating	Operating  Temperature	Hi-pot Rating	Drawing
T24C03SP		10G	SINGLE	SMD	24Pin	0.99mm	Non-PoE	0℃to+70℃	1500V	PDF
T24P02S		10G	SINGLE	SMD	24Pin	1.00mm	Non-PoE	0℃to+70℃	1500V	PDF
T24P03SW		10G	SINGLE	SMD	24Pin	1.00mm	Non-PoE	-40℃to+85℃	1500V	PDF
T24C16S		10G	SINGLE	SMD	24Pin	1.27mm	Non-PoE	0℃to+70℃	1500V	PDF

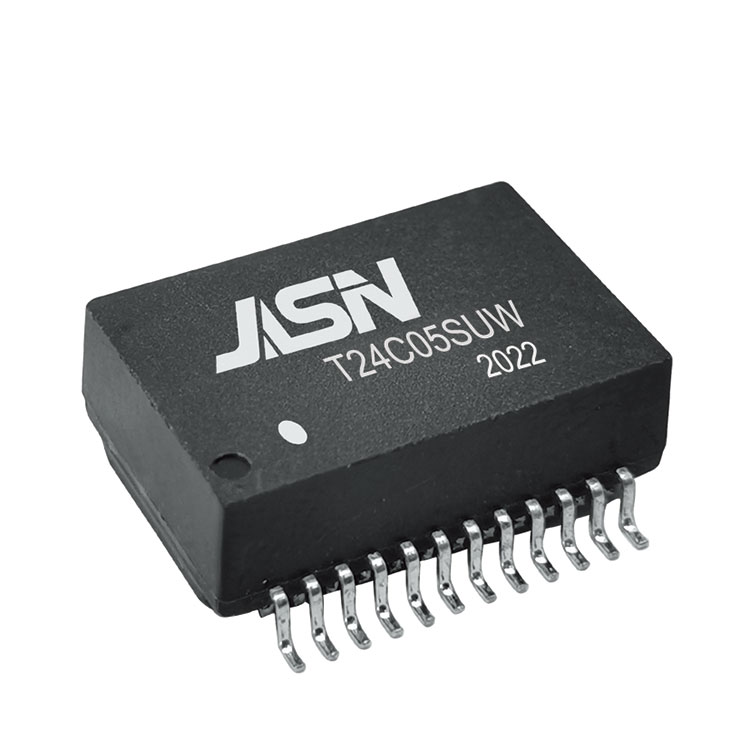

T24C05SUW		10G	SINGLE	SMD	24Pin	1.27mm	4PPoE100W	-40℃to+125℃	1500V	PDF
T48C01S		10G	DUAL	SMD	48Pin	1.02mm	Non-PoE	0℃to+70℃	1500V	PDF
T48C02S		10G	DUAL	SMD	48Pin	1.02mm	Non-PoE	0℃to+70℃	1500V	PDF
