100M Pulse Transformer

100M Pulse Transformer

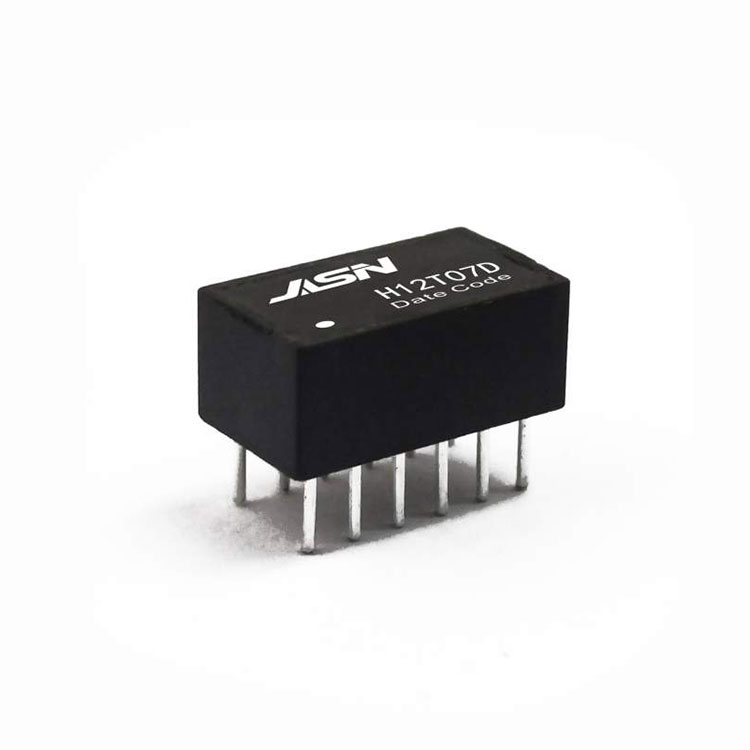

You can rest assured to buy 100M Pulse Transformer from J ASN. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time! H12T07 is a DIP package product.

Model:H12T07D

Model:H12T07D

Send Inquiry

PDF DownLoad

Product Description

You are welcomed to come to JASN factory to buy the latest selling, low price, and high-quality 100M Pulse Transformer. We look forward to cooperating with you.

Feature

Compliant with IEEE 802.3 standard.
Comply with RoHS requirements.
OperatinO temperature ranOeO 0℃ to OO0℃.
StoraOe temperature ranOeO -22℃ to O102℃.

Electrical Specifications @ 25℃

OCLO	320uH Min. @100KHz/0.1V with 8mA DC Bias
Hi-POT O	1200Vrms
Turn RatioO	1O1±3%
LKO	0.2uH Max @100KHz/0.2V
Cw/w	32PF Max @100KHz/0.2V
D.C.RO	1.2 ohm Max
Insertion LossO	1-100MHzO -1.0dB Max
Cross Talk O	1-100MHzO -30dB Min
Return LossO	1-30MHz	40MHz	20MHz	60-80MHZ	80-100MHZ
	-18dB Min	-14.4dB Min	-13.1dB Min	-12dB Min	-10dB Min
