10/100Base-T Lan Magnetics
  • 10/100Base-T Lan Magnetics - 0 10/100Base-T Lan Magnetics - 0

10/100Base-T Lan Magnetics

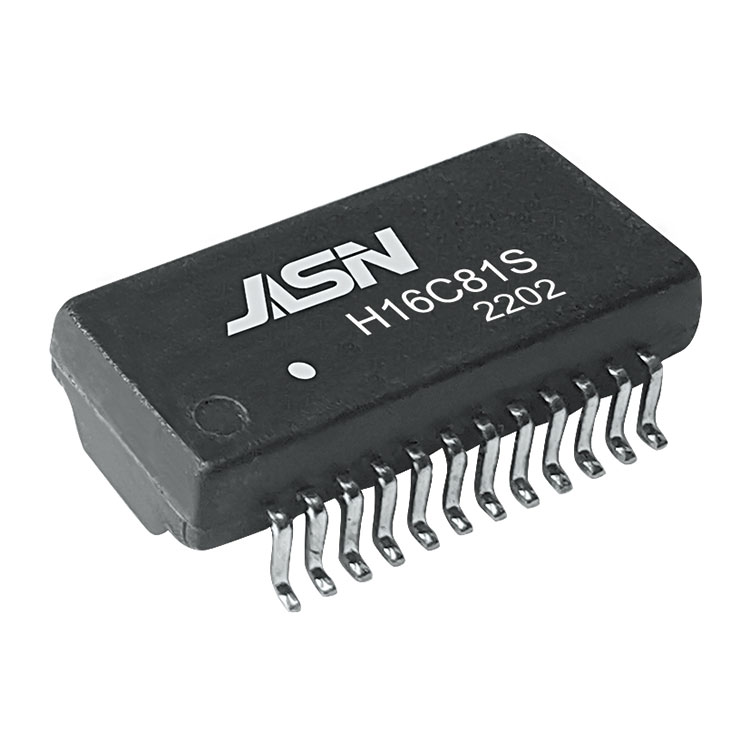

High quality 10/100Base-T Lan Magnetics is offered by China manufacturer JASN. The PN H16C81S provides different pin layout for your choice.

Model:H16C81S

Model:H16C81S

Send Inquiry

PDF DownLoad

You can rest assured to buy 10/100Base-T Lan Magnetics from JASN factory and we will offer you the best after-sale service and timely delivery.


Feature


Compliant with IEEE 802.3u standard.
Comply with RoHS requirements.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.

Electrical Specifications @ 25℃



OCL:

350uH Min. @100KHz/0.1V with 8mA DC Bias

Hi-POT :

1500VAC 1mA 2S

Turn Ratio:

1:1±3%

LK:

0.5uH Max @100KHz/0.2V

Cw/w

35PF Max @100KHz/0.2V

D.C.R:

1.2 ohm Max

Insertion Loss:

1-100MHz: -1.0dB Max

Cross Talk :

1-100MHz: -30dB Min



Return Loss:

1-30MHz

40MHz

50MHz

60-80MHz

80-100MHz

-18dB Min

-14.4dB Min

-13.1dB Min

-12dB Min

-10dB Min
