10/100Base-T Pulse Transformer

JASN is a professional Pulse transformer manufacturer, you can rest assured to buy 10/100Base-T Pulse Transformer from our factory and we will offer you the best after-sale service and timely delivery. The PN H16C01SW can support industry temp application. JASN Part Number Cross Reference: Pulse PN HX1188NL

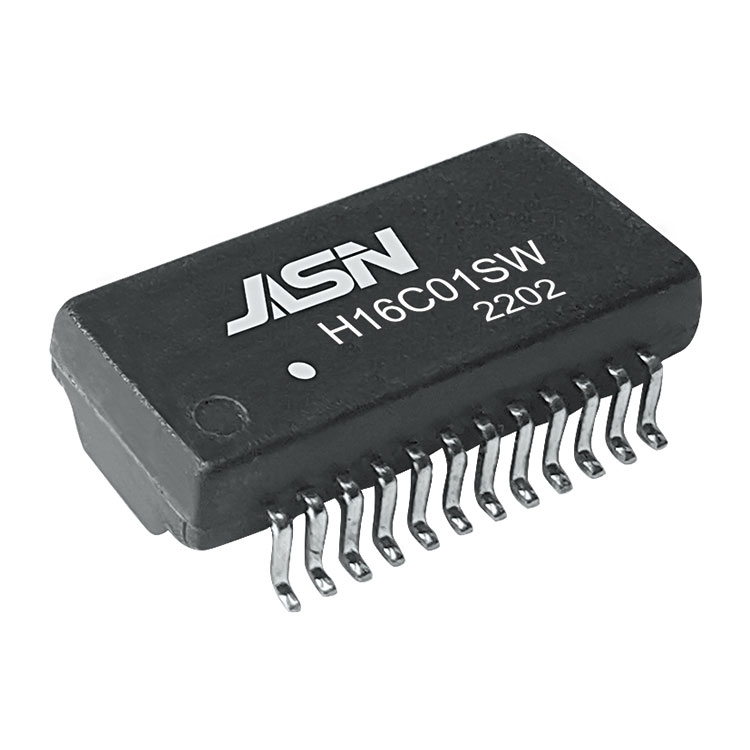

Model:H16C01SW

Model:H16C01SW

Send Inquiry

PDF DownLoad

JASN as the professional manufacturer, we would like to provide you 10/100Base-T Pulse Transformer. And we will offer you the best after-sale service and timely delivery.


Feature


Compliant with IEEE 802.3u standard.
Comply with RoHS requirements.
Suitable for End-span PoE applications with 350mA current capability
Operating temperature range: -40℃ to +85℃.
Storage temperature range: -40℃ to +105℃.


Electrical Specifications @ 25℃


OCL:

350uH Min. @100KHz/0.1V with 8mA DC Bias

Hi-POT :

1500VAC 1mA 2S

Turn Ratio:

1:1±3%

LK:

0.5uH Max @100KHz/0.2V

Cw/w

35PF Max @100KHz/0.2V

D.C.R:

1.2 ohm Max

Insertion Loss:

1-100MHz: -1.0dB Max

Cross Talk :

1-100MHz: -30dB Min



Return Loss:

1-30MHz

40MHz

50MHz

60-80MHz

80-100MHz

-18dB Min

-14.4dB Min

-13.1dB Min

-12dB Min

-10dB Min
