10/100Base-T Signal Transformer

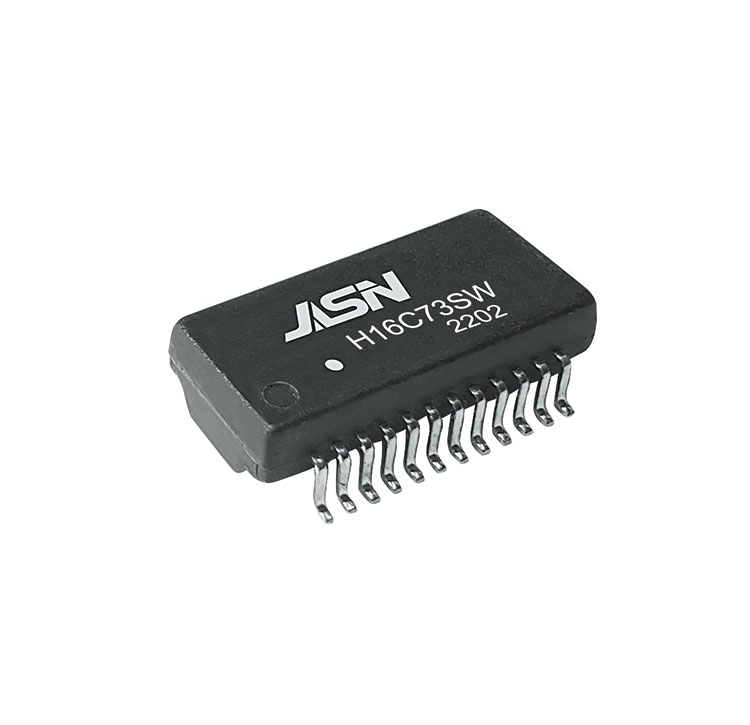

JASN is a leading China 10/100Base-T Signal Transformer manufacturer, supplier and exporter. The PN H16C73SW designed to meet IEEE 802.3u standard and compatible with all Major PHYs apply on 10/100M speed rate and suitable for -40°C to +85°C application.

Model:H16C73SW

Model:H16C73SW

Send Inquiry

PDF DownLoad

As a professional 10/100Base-T Signal Transformer manufacturer, you can rest assured to buy 10/100Base-T Signal Transformer from JASN factory and we will offer you the best after-sale service and timely delivery.

Feature


Compliant with IEEE 802.3 standard.
Comply with ROHS requirements.
Supports 2pairs of category 5 UTP cable
Operating temperature range: -40℃ to +85℃.
Storage temperature range: -25℃ to +105℃.

Electrical Specifications @ 25℃




OCL:

350uH Min. @100KHz/0.1V with 8mA DC Bias

Hi-POT :

1500VAC

Turn Ratio:

1:1±3%

LK:

0.5uH Max @100KHz/0.2V

Cw/w

28PF Max @100KHz/0.2V

D.C.R:

1.2 ohm Max

Insertion Loss:

1-100MHz: -1.0dB Max



Cross Talk :

30MHz

60MHz

100MHz

-45dB Min

-38dB Min

-33dB Min



Return Loss:

1-30MHz

40-50MHz

60-80MHz

100MHZ

-16dB Min

-13dB Min

-11dB Min

-10dB Min



D.C.M.R:

30MHz

60MHz

100MHz

-43dB Min

-37dB Min

-33dB Min
