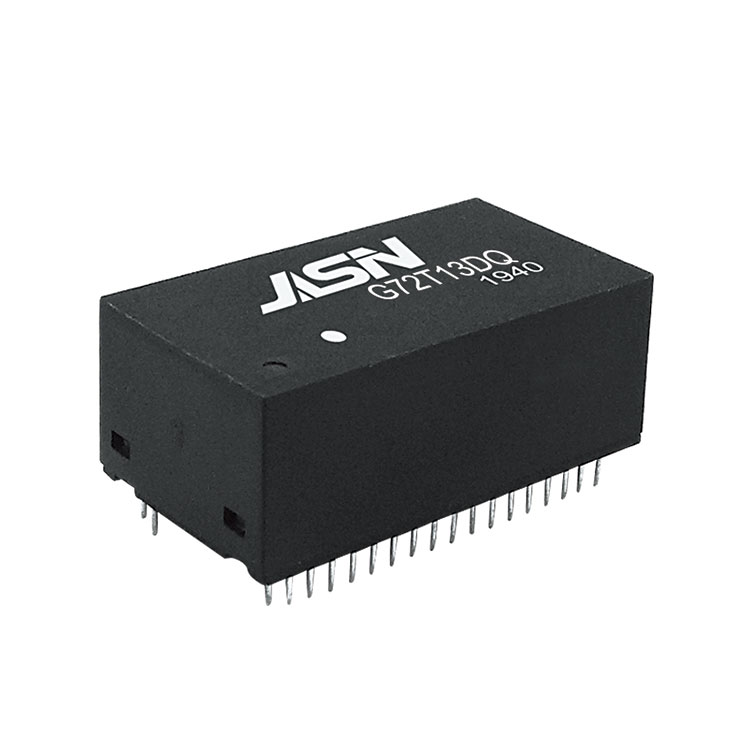

Signal Transformer

JASN is China manufacturer & supplier who mainly produces Signal Transformer with many years of experience. PN G72T13DQ can support PoE option and has Quad channel 1000M application.

Model:G72T13DQ

Model:G72T13DQ

Send Inquiry

PDF DownLoad

High quality Signal Transformer is offered by China manufacturer JASN. Buy Signal Transformer which is of high quality directly with low price.

Feature


Compliant with IEEE 802.3ab standard.
Comply with RoHS requirements.
Operating temperature range: -40℃ to +85℃.
Storage temperature range: -40℃ to +125℃.


Electrical Specifications @ 25℃



OCL:

350uHMin.@100KHz/0.1Vwith8mADCBias

Hi-POT:

1500Vrms

TurnRatio:

1:1±3%

LK:

0.5uHMax@100KHz/0.2V

Cw/w

120pFMax@100KHz/0.2V

D.C.R:

1.4ohm Max

InsertionLoss:

1-100MHz:-1.0dBMax

CrossTalk :

1-100MHz:-30dBMin



ReturnLoss:

1-30MHz

40MHz

50MHz

60-80MHZ

80-100MHZ

-18dBMin

-14.4dBMin

-13.1dBMin

-12dBMin

-10dBMin
