1000Base-T Network Transformer

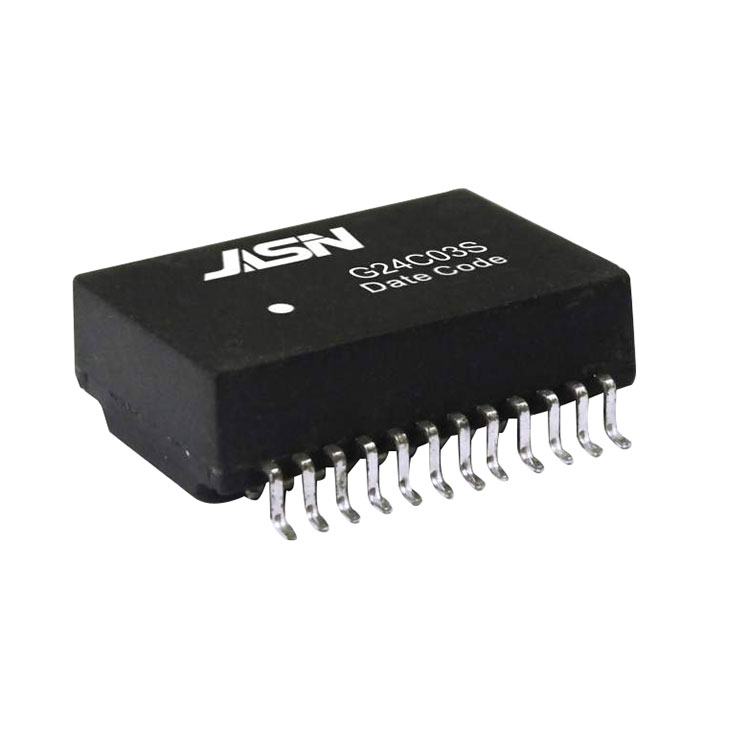

China Jansum Electronics has been successful for many domestic and foreign enterprises to provide advanced 1000Base-T Network Transformer, technical support and excellent after sales service. G24C03S meets IEEE 802.3ab and has SMD package.

Model:G24C03S

Model:G24C03S

Send Inquiry

PDF DownLoad

Product Description

High quality 1000Base-T Network Transformer is offered by China manufacturer JASN. Buy 1000Base-T Network Transformer which is of high quality directly with low price.

Feature

Compliant with IEEE 802.3ab standard.
Comply with RoHS requirements.
Operating temperature: 0℃ to +70℃

Electrical Specifications @ 25℃

Inductance, Ls(Primary)	350uH Min. @100KHz/0.1V with 8mA DC Bias
Turn Ratio(Primary):(Secondary):	1CT:1CT±2%
Polarity(Primary):Secondary)	Per Schematic
Insertion Loss:	1-100MHz: -1.0dB Max
Return Loss：	1-30MHz	40MHz	50MHz	60-80MHZ
	-18dB Min	-14.5dB Min	-13.1dB Min	-12dB Min
Cross Talk(between channels)	30MHz	60MHz	100MHz
	-45dB Min	-40dB Min	-35dB Min
CMRR;	-35dB Min@0.1-100MHz
Hi-Pot (Primary):(Secondary)	1500Vrms 60s
