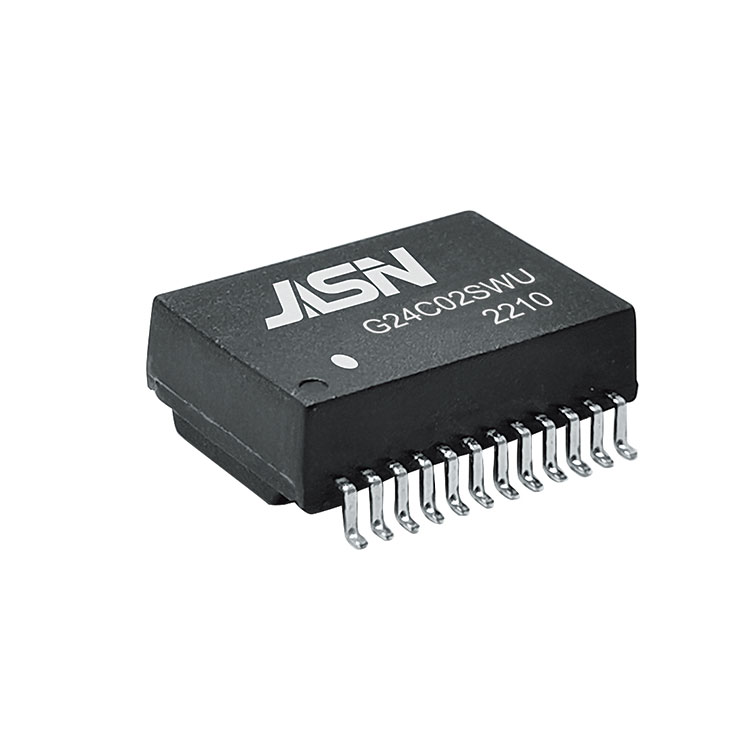

The best 1000Base-T Lan Magnetics is offered by China manufacturer Jansum Electronics. The PN G24C02SWU can support industry application.Welcome to buy 1000Base-T Lan Magnetics from JASN.

Model:G24C02SWU

Model:G24C02SWU

Send Inquiry

PDF Download

Find a huge selection of 1000Base-T Lan Magnetics from China at JASN. Provide professional after-sales service and the right price, looking forward to cooperation.


Feature


Compliant with IEEE 802.3ab standard.
Comply with RoHS requirements.
Suitable for End-span PoE applications with 720mA current capability.
Operating temperature range: -40℃ to +85℃.
Storage temperature range: -40℃ to +125℃.


Electrical Specifications @ 25℃



OCL:

350uH Min. @100KHz/0.1V with 8mA DC Bias(-40~~+105℃)

Hi-POT :

1500Vrms

Turn Ratio:

1:1±3%

LK:

0.5uH Max @100KHz/0.2V

Cw/w

35PF Max @100KHz/0.2V

D.C.R:

1.2 ohm Max

Insertion Loss:

1-100MHz: -1.0dB Max



CMMR

2MHz

30-200MHz

-50dB MIN

-15+20*log (f/200) dB Typ

DCR(Secondary-half winding)

0.65 Ohms Max



Cross Talk :

1 MHz

10-100 MHz

50dB MIN

-55+22*log (f/10) dB MIN



Return Loss:

1-30MHz

40MHz

50MHz

60-80MHZ

80-100MHZ

-18dB Min

-14.4dB Min

-13.1dB Min

-12dB Min

-10dB Min
