Lan PoE Modules
Our Lan PoE Modules offers perfect functions and superior performance. G96T03DP is compliant with IEEE 802.3ab standard and support Quad port 1000MBase-T application.

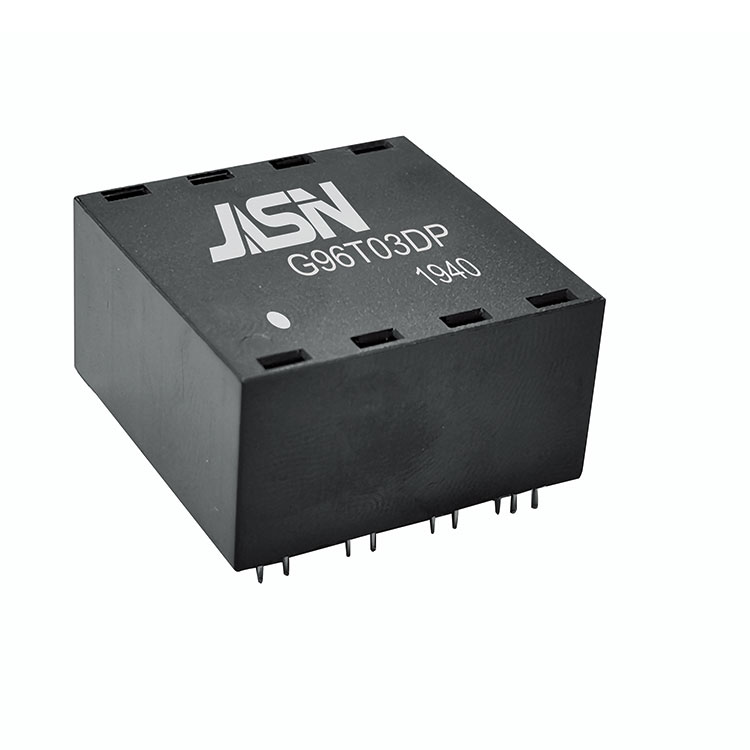

Model:G96T03DP
Model:G96T03DP
Send Inquiry
PDF DownLoad
JASN is a professional China Lan PoE Modules manufacturer and supplier, if you are looking for the best Lan PoE Modules with low price, consult us now!
Feature
Compliant with IEEE 802.3ab&802.3at standard.
Comply with RoHS requirements.
Suitable for End-span PoE applications with 720mA current capability.
Operating temperature range: -40℃ to +110℃.
Storage temperature range: -40℃ to +110℃.
Electrical Specifications @ 25℃
|
OCL: |
350uH Min. @100KHz/0.1V with 8mA DC Bias |
||||
|
120uH Min. @100KHz/0.1V with 18.3mA DC Bias |
|||||
|
Hi-POT : |
1500Vrms |
||||
|
Turn Ratio: |
1:1±3% |
||||
|
LK: |
0.5uH Max @100KHz/0.2V |
||||
|
Cw/w |
35pF Max @100KHz/0.2V |
||||
|
D.C.R: |
1.4 ohm Max |
||||
|
Insertion Loss: |
1-100MHz: -1.0dB Max |
||||
|
Cross Talk : |
1-100MHz: -30dB Min |
||||
|
Return Loss: |
1-30MHz |
40MHz |
50MHz |
60-80MHZ |
80-100MHZ |
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
-10dB Min |
|
