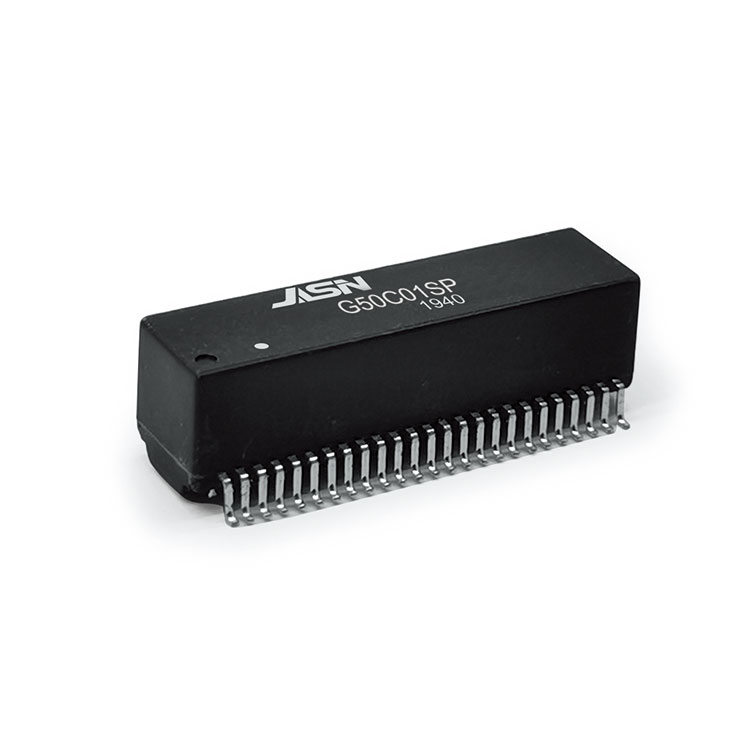

GIGABIT Network Transformer

You can rest assured to buy GIGABIT Network Transformer from JASN factory and we will offer you the best after-sale service and timely delivery. The PN G50C01SP is suitable for End-span PoE applications with720mA current capability.

Model:G50C01SP

Model:G50C01SP

Send Inquiry

PDF Download

High quality GIGABIT Network Transformer is offered by China manufacturer JASN. Buy GIGABIT Network Transformer which is of high quality directly with low price.


Feature


Compliant with IEEE 802.3at standard.
Comply with RoHS requirements.
Suitable for End-span PoE applications with720mA current capability.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +105℃.


Electrical Specifications @ 25℃



OCL:

350uH Min. @100KHz/0.1V with 8mA DC Bias

Hi-Pot :

1500Vrms

Turns Ratio:

1CT:1CT±3%

LK:

0.5uH Max @100KHz/0.2V

Cw/w

35pF Max @100KHz/0.2V

D.C.R:

1.2 ohm Max

Insertion Loss:

1-100MHz: -1.0dB Max

Cross Talk :

1-100MHz: -30dB Min



Return Loss:

1-40MHz

40-80MHz

100MHz

-16dB Min

-10+20log(f/80)dB Min

-10dB Min
