Jansum Electronics is China manufacturer & supplier who mainly produces GIGABIT Magnetics Modules with many years of experience. G50C01SQ meets IEEE 802.3ab and supports PoE application.Welcome to buy product from JASN.

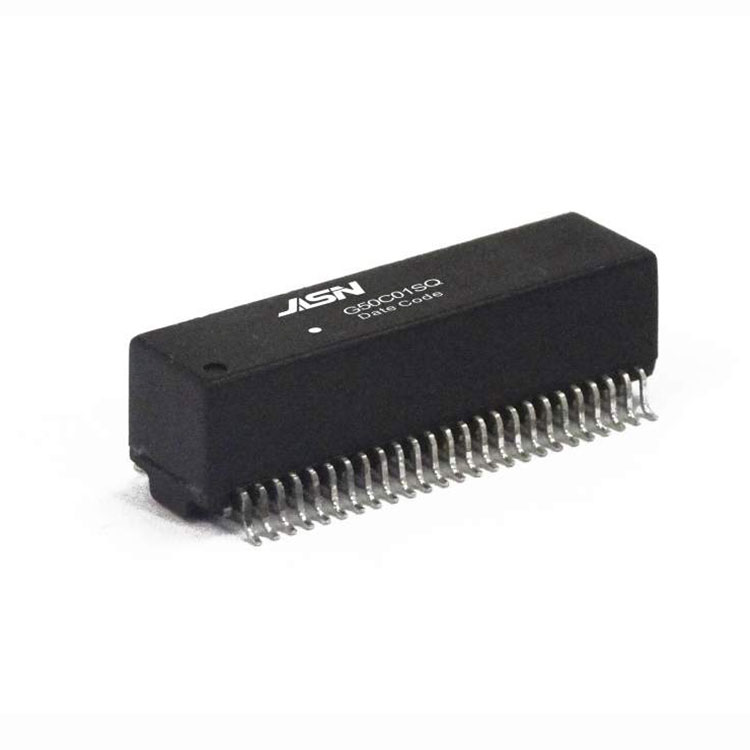

Model:G50C01SQ

Model:G50C01SQ

Send Inquiry

PDF DownLoad

JASN is a professional leader China GIGABIT Magnetics Modules manufacturer with high quality and reasonable price. Welcome to contact us.


Feature


Compliant with IEEE 802.3at standard.
Comply with ROHS requirements.
Suitable for End-span POE applications with 720mA current capability.
Operating temperature range:-40℃ to +85℃.
Storage temperature range: -40℃ to +125℃.


Electrical Specifications @ 25℃





OCL:

350uH Min. @100KHz/0.1V with 8mA DC Bias

200uH Min. @100KHz/0.1V with 18mA DC Bias

Hi-POT :

1500Vrms

Turn Ratio:

1:1±3%

LK:

0.5uH Max @100KHz/0.2V

Cw/w

35PF Max @100KHz/0.2V

D.C.R:

1.2 ohm Max

Insertion Loss:

1-100MHz: -1.0dB Max

Cross Talk :

1-100MHz: -30dB Min



Return Loss:

1-30MHz

40MHz

50MHz

60-80MHZ

80-100MHZ

-18dB Min

-14.4dB Min

-13.1dB Min

-12dB Min

-10dB Min
