2.5G Magnetics Modules

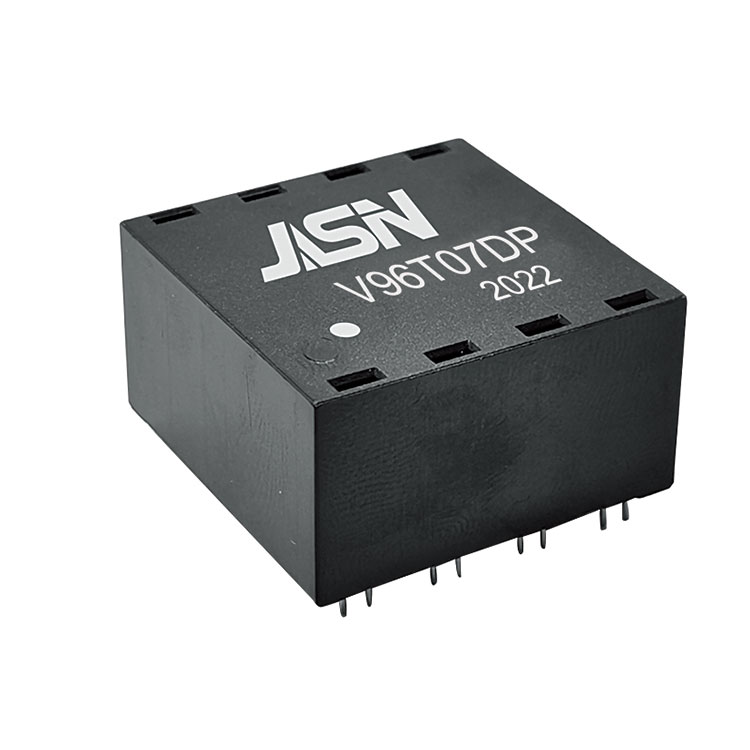

You can rest assured to buy 2.5G Magnetics Modules from JASN factory and we will offer you the best after-sale service and timely delivery. The PN V96T07DP is DIP package and supports four channel 2.5G base-T application. This part is supporting PoE as well.
Model:V96T07DP
Model:V96T07DP
Send Inquiry
PDF DownLoad
With years of experience in production 2.5G Magnetics Modules, JASN can supply a wide range of 2.5G Magnetics Modules. High quality 2.5G Magnetics Modules can meet many applications, if you need, please get our online timely service about 2.5G Magnetics Modules.
Feature
Comply with IEEE802.3bz&802.3bt
Comply with RoHS requirements.
Suitable for PoE application with 720mA current capability
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +105℃.
Electrical Specifications @ 25℃
|
OCL: |
180uH Min. @100KHz/0.1V with 8mA DC Bias |
||
|
Hi-Pot : |
1500Vrms |
||
|
Turns Ratio: |
1CT:1CT±3% |
||
|
D.C.R: |
1.0 ohm Max |
||
|
Insertion Loss: |
@1-50MHz |
@50-125MHz |
@125-200MHz |
|
-0.5dB Max |
-1.0dB Max |
-2.0dB Max |
|
|
Return Loss: |
-20dB Min @1-40MHz |
||
|
-20+15log(f/40)dB Min@40-200MHz |
|||
|
Cross Talk : |
-30dB Min@1-125MHz |
||
|
CMRR: |
-30dB Min@1-125MHz |
||
