2.5GBase-T Signal Transformer

High quality 2.5GBase-T Signal Transformer is offered by China manufacturer JASN. V24C02SQ is suitable for End-span PoE applications with 720mA current capability and support industry appication.

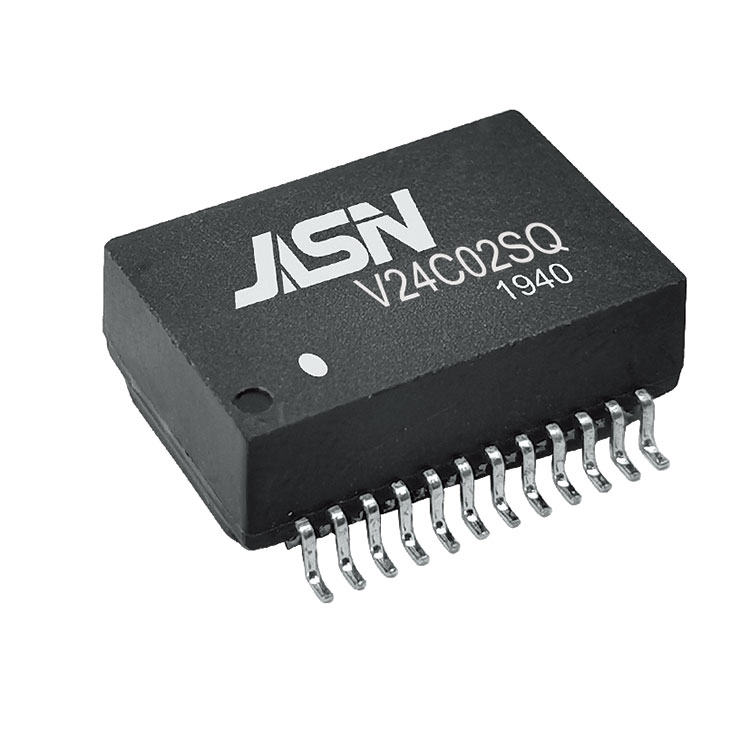

Model:V24C02SQ

Model:V24C02SQ

Send Inquiry

PDF Download

JASN as the professional manufacturer, we would like to provide you high quality 2.5GBase-T Signal Transformer. And we will offer you the best after-sale service and timely delivery.


Feature


Comply with IEEE802.3bz&802.3bt.
Comply with RoHS requirements.
Suitable for End-span PoE applications with 720mA current capability
Operating temperature range: -40℃ to +85℃.
Storage temperature range: -40℃ to +125℃.


Electrical Specifications @ 25℃



OCL:

120uH Min. @100KHz/0.1V with 12.5mA DC Bias

Hi-Pot :

1500Vrms

Turns Ratio:

1CT:1CT±3%

D.C.R:

1.0 ohm Max



Insertion Loss:

-1.0dB [email protected]

-1.5dB [email protected]



Return Loss:

-16dB Min @1-40MHz

-16+10log(f/40)dB [email protected]

Cross Talk :

-30dB [email protected]

CMRR:

-30dB [email protected]
