2.5GBase-T Ethernet Transformer
  • 2.5GBase-T Ethernet Transformer - 0 2.5GBase-T Ethernet Transformer - 0

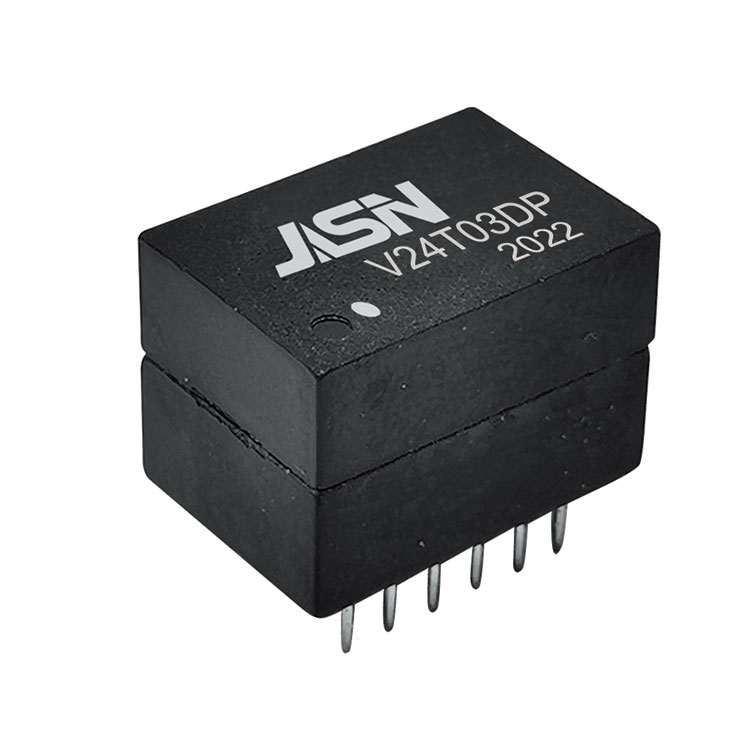

2.5GBase-T Ethernet Transformer

You can buy ous factory price 2.5GBase-T Ethernet Transformer from a reliable China Ethernet Transformer manufacturer JASN. PN V24T03DP is Rohs compliant and has different pin layout option.

Model:V24T03DP

Model:V24T03DP

Send Inquiry

PDF DownLoad

You are welcomed to come to JASN factory to buy the latest selling, low price, and high-quality 2.5GBase-T Ethernet Transformer. We look forward to cooperating with you.


Feature


Comply with IEEE802.3bz&802.3at.
Comply with RoHS requirements.
Suitable for End-span PoE applications with 720mA current capability.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +105℃.


Electrical Specifications @ 25℃



OCL:

150uH Min. @100KHz/0.1V with 10.8mA DC Bias

Hi-Pot :

1500VAC 1mA 2S

Turns Ratio:

1CT:1CT±3%

D.C.R:

1.0 ohm Max



Insertion Loss:

-1.0dB Max@1-100MHz

-1.5dB Max@100-125MHz



Return Loss:

-16dB Min @1-40MHz

-16+10log(f/40)dB Min@40-250MHz

Cross Talk :

-30dB Min@1-125MHz

CMRR:

-30dB Min@1-125MHz
