1000M Magnetics Modules
You can rest assured to buy 1000M Magnetics Modules from JASN factory and we will offer you the best after-sale service and timely delivery. G48C04S is compatible with RoHS peak reflow temperature 260C, or wave solder process 260+/-5C for 10 Sec.

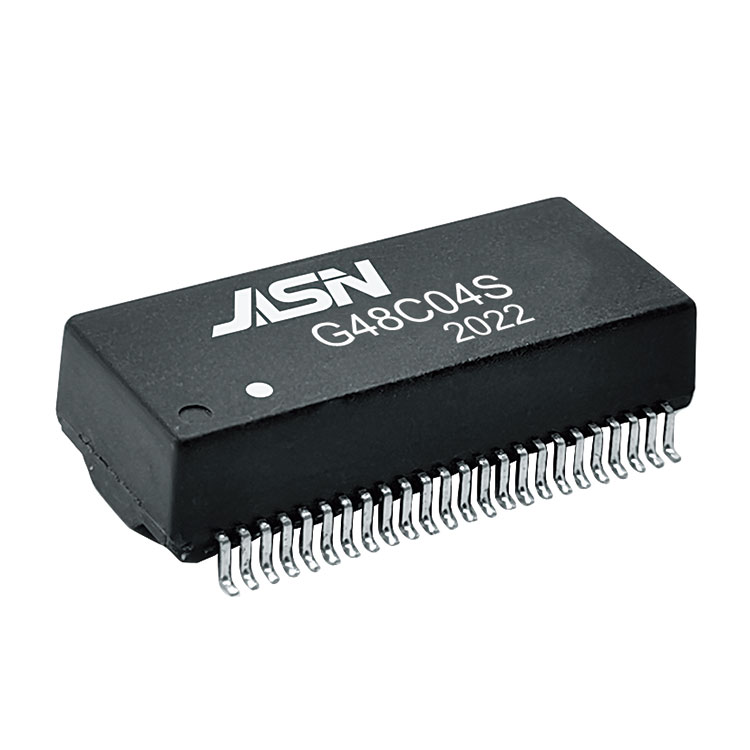

Model:G48C04S
Model:G48C04S
Send Inquiry
PDF DownLoad
As a professional 1000M Magnetics Modules manufacturer, you can rest assured to buy 1000M Magnetics Modules from JASN factory and we will offer you the best after-sale service and timely delivery.
Feature
Compliant with IEEE 802.3 standard.
Comply with ROHS requirements.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.
Electrical Specifications @ 25℃
|
OCL: |
350uH Min. @100KHz/0.1V with 8mA DC Bias |
||||
|
Hi-POT : |
1500Vrms |
||||
|
Turn Ratio: |
1:1±3% |
||||
|
LK: |
0.5uH Max @100KHz/0.2V |
||||
|
Cw/w |
35PF Max @100KHz/0.2V |
||||
|
D.C.R: |
1.2 ohm Max |
||||
|
Insertion Loss: |
1-100MHz: -1.0dB Max |
||||
|
Cross Talk : |
1-100MHz: -30dB Min |
||||
|
Return Loss: |
1-30MHz |
40MHz |
50MHz |
60-80MHZ |
80-100MHZ |
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
-10dB Min |
|
