1000M Lan Magnetics
You can buy factory price 1000M Lan Magnetics from a JASN China Lan Magnetics manufacturer. The PN G48C03SQ can meet industry temp requirement.

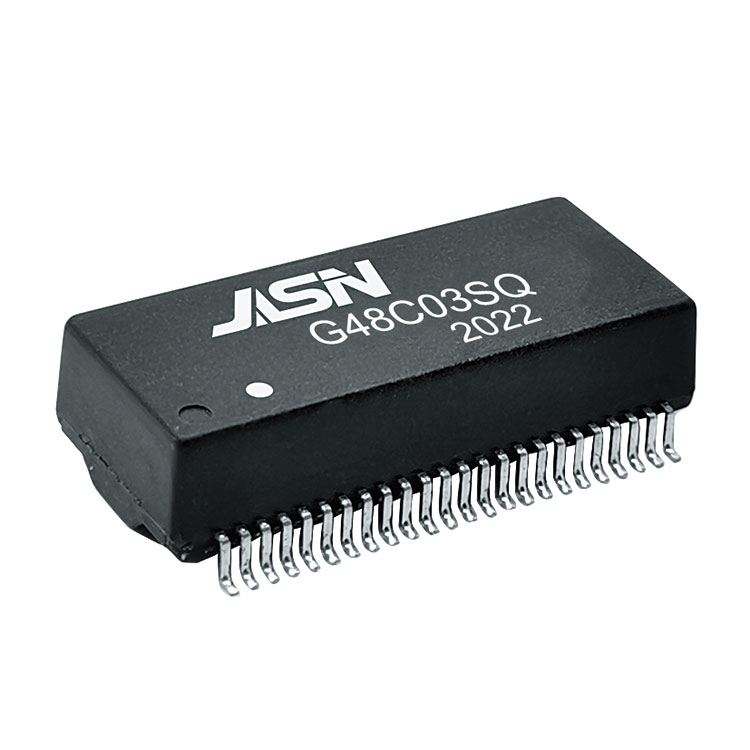

Model:G48C03SQ
Model:G48C03SQ
Send Inquiry
PDF DownLoad
JASN as the professional manufacturer, we would like to provide you high quality 1000M Lan Magnetics. And we will offer you the best after-sale service and timely delivery.
Feature
Compliant with IEEE 802.3ab&802.3at standard.
Suitable for End-span PoE applications with 750mA current capability.
Comply with RoHS requirements.
Operating temperature range: -40℃ to +85℃.
Storage temperature range: -40℃ to +125℃
Electrical Specifications @ 25℃
|
OCL: |
350uH Min. @100KHz/0.1V with 8mA DC Bias |
||||
|
Hi-POT : |
1500Vrms |
||||
|
Turn Ratio: |
1:1±3% |
||||
|
LK: |
0.5uH Max @100KHz/0.2V |
||||
|
Cw/w |
35pF Max @100KHz/0.2V |
||||
|
D.C.R: |
1.2 ohm Max |
||||
|
Insertion Loss: |
1-100MHz: -1.0dB Max |
||||
|
Cross Talk : |
100MHz: -30dB Min |
||||
|
Return Loss: |
1-30MHz |
40MHz |
50MHz |
60-80MHZ |
80-100MHZ |
|
-18dB Min |
-14.4dB Min |
-13.1dB Min |
-12dB Min |
-10dB Min |
|
