Single Channel BMS Transformer
  • Single Channel BMS Transformer - 0 Single Channel BMS Transformer - 0

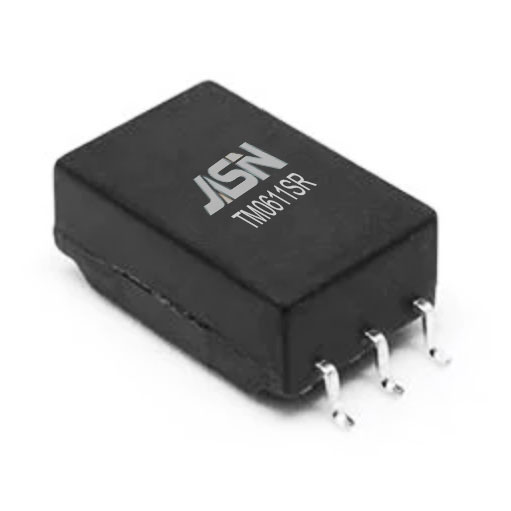

Single Channel BMS Transformer

JASN is a professional leader China Single Channel BMS Transformer manufacturer with high quality and reasonable price. Welcome to contact us.

Model:TM0611SR

Send Inquiry

You are welcomed to come to JASN factory to buy the latest selling, low price, and high-quality Single Channel BMS Transformer. We look forward to cooperating with you.

Feature


Comply with RoHS requirements.

Comply with AEC-Q200.

Creepage distance: >10mm.

Compliant to J-STD-020:level 1,no moisture sensitive.(Tp: 250C Max.)

Operating temperature range: -40C to +125C.

Storage temperature range: -50C to +125C.

Product scrap disposal based on the local laws and regulations.


Electrical Specifications @ 25℃


OCL:

150uH ~ 450uH. @100KHz/0.1V (-40C to+125C)

Hi-Pot :

4300VDC 1mA 60Sec

Turns Ratio:

1:1±2%

LK:

0.5uH Max @100KHz/0.1V


DCR:

0.45ohm Max. @Transformer side

0.85ohm Max.@CM choke side

Insertion Loss:

-0.35dB Max 4MHz

Return Loss:

-20dB Min @4MHz (Z out= 100Q)


CMRR:

-35dB Min @1- 10MHz

-20dB Min @10-100MHz

Design Construction:

Functional insulation ;Working voltage 1000VDC;
