BMS Transformer without CMC

You are welcomed to come to JASN factory to buy the latest selling, low price, and high-quality BMS Transformer without CMC. We look forward to cooperating with you.

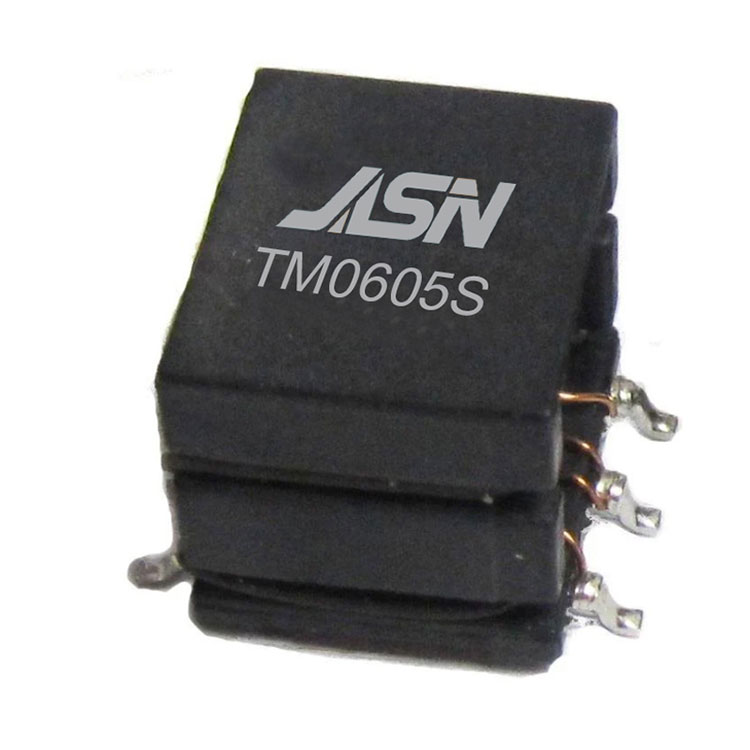

Model:TM0605S

Send Inquiry

JASN as the professional manufacturer, we would like to provide you high quality BMS Transformer without CMC. And we will offer you the best after-sale service and timely delivery.


Feature


● Current Rating:1A

● Voltage-Time:23uS

● Switching Frequency:150KHZ min

● 11 mm min creepageand clearance distance between PRI&SEC

● Coplanarity:0.1[.004]Max

● Designed to comply with the following requirements as defined by IEC60601- 1(ed): Amendment 1:Providing two means of patient Protection up to a working voltage of 360Vac

● Complies with the following requirements as defined by

 IEC60950- 1,EN60950- 1,UL60950- 1/CSA60950- 1 and AS/NZS60950- 1 -Reinforced insulation for a primary circuit at a working voltage of 550Vac Overvoltage category II,Pollution Degree 2,up to 2km above sea level

● Designed to comply with the following requirements as defined by IEC60664- 1: -Reinforced insulation for a primary circuit at a working voltage of 400Vac up to 2km above sea level.

● Designed to comply with the following requirements as defined by IEC61010- 1:

-Reinforced insulation for a line to neutral voltage up to 1000vrms,overvoltage Category II,up to 2km above sea level

-Reinforced insulation for a line to neutral voltage up to 600vrms,overvoltage Category II,up to 5km above sea level

● Complies with the following requirements as defined by IEC62368- 1,UL/CSA62368- 1and EN62368- 1

-Reinforced insulation for ES3,operating frequency above 30KHZ,working voltage up to 550Vrms ,1600Vpeak,overvoltage category II,Pollution Degree II,and up to 2km above sea level

● Comply with RoHS requirements.

● Operating temperature range:-40C to +125C .

● Qualified to AEC-Q200


Electrical Specifications @ 25℃


PAPAMETER

TEST CONDITIONS

VALUE

D.C.RESISTANCE 1-3

@20C

0. 15ohms max

D.C.RESISTANCE 6-4

@20C

0. 15ohms max

INDUCTANCE 1-2

100KHZ 10mVac.LS

110uH min

INDUCTANCE 2-3

100KHZ 10mVac.LS

110uH min

CAPACITANCE 1-6

100KHZ 10mVac.CS

18pF max

DIELECTRIC 1-6

6250Vrms 2seconds

5000Vrms ,1minute

TURNS RATIO

6-4:1-3

1:1±2%
