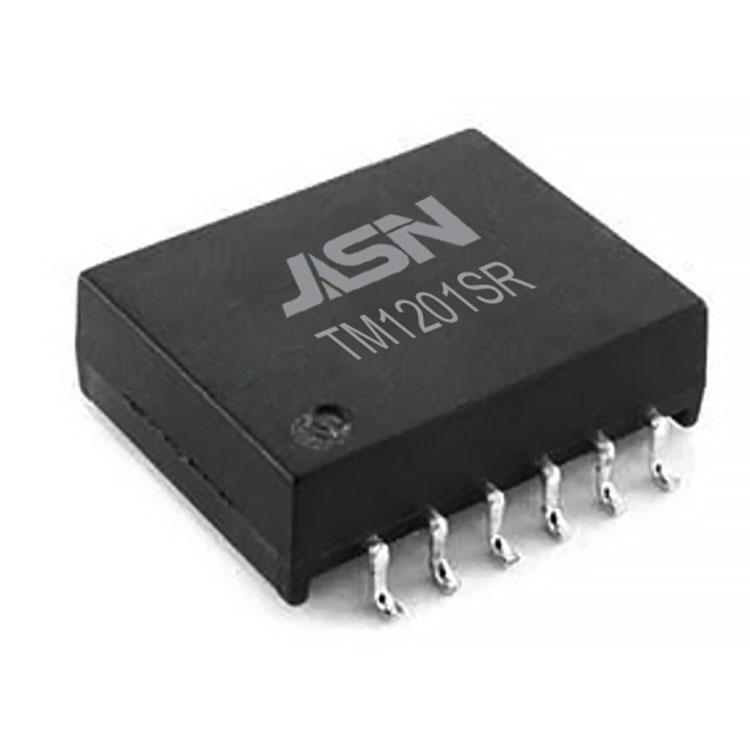

Dual Channel BMS Transformer

High quality Dual Channel BMS Transformer is offered by China manufacturer JASN. Buy Dual Channel BMS Transformer which is of high quality directly with low price.

Model:TM1201SR

Send Inquiry

Product Description

JASN is a professional leader China Dual Channel BMS Transformer manufacturer with high quality and reasonable price. Welcome to contact us.

Feature

Comply with RoHS requirements.

Comply with AEC-Q200.

Compliant to J-STD-020:level 1,no moisture sensitive.(Tp: 250C Max.)

Operating temperature range: -40C to +125C.

Storage temperature range: -50C to +125C.

Product scrap disposal based on the local laws and regulations.

Electrical Specifications @ 25℃

OCL:	150uH ~ 450uH. @100KHz/0.1V (-40C to+125C)
Hi-Pot :	4300VDC 1mA 60Sec
Turns Ratio:	1:1±2%
Leakage Inductance::	0.5uH Max @100KHz/0.1V
DCR:	0.45ohm Max. @Transformer side
DCR:	0.85ohm Max.@CM choke side
Insertion Loss:	-0.25dB Max 4MHz
Return Loss:	-22dB Min @4MHz (Z out= 100Ω)
CMRR:	-35dB Min @1-200MHz
Design Construction:	Reinforced insulation per IEC62477-1,IEC60664- 1.IEC62368-1; Working voltage up to 1600VDC;Creepage distance>10mm,Clearance distance>14mm. Pollution Degree Ⅱ,Material group CTI Ⅰ;Overvoltage Category Ⅲ,up to 2km above sea level.UL pending.
