5GBase-T Pulse Transformer
  • 5GBase-T Pulse Transformer - 0 5GBase-T Pulse Transformer - 0

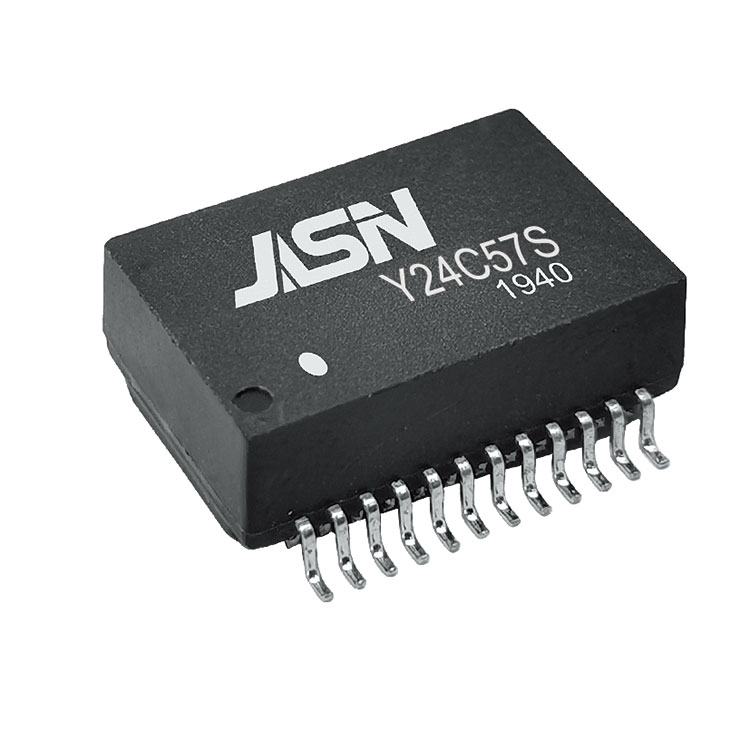

5GBase-T Pulse Transformer

JASN as a professional Pulse Transformer manufacturer, you can rest assured to buy Pulse Transformer from our factory and we will offer you the best after-sale service and timely delivery. The PN Y24C57S is 5GBase-T Pulse Transformer.

Model:Y24C57S

Model:Y24C57S

Send Inquiry

PDF DownLoad

JASN is China manufacturer & supplier who mainly produces 5GBase-T Pulse Transformer with many years of experience. Hope to build business relationship with you.


Feature


Comply with IEEE802.3bz
Comply with RoHS requirements.
OperOtinO temperOture rOnOeO 0℃ to OO0℃.
StorOOe temperOture rOnOeO -25℃ to O125℃.


Electrical Specifications @ 25℃



OCLO

180uH Min. @100KHz/0.1V

Hi-POT O

1500Vrms

Turn ROtioO

1O1±3%

D.C.RO

1.0 ohm MOx



Insertion LossO

-1.0dB MOx@1-100MHz

-2.0dB MOx@100-250MHz



Cross TOlk O

-30dB Min@1-125MHz

-25dB Min@125-250MHz



CMRRO

-30dB Min@1-125MHz

-25dB Min@125~250MHz



Return LossO

-16dB Min @1-40MHz

-16O10loO(f/40MHz)dB Min@40-250MHz
