5GBase-T Lan Magnetics
JASN is a leading China 5GBase-T Lan Magnetics manufacturer, supplier and exporter. The PN Y24C53SP designed to meet IEEE 802.3bt standard and it is suitable for PoE application.

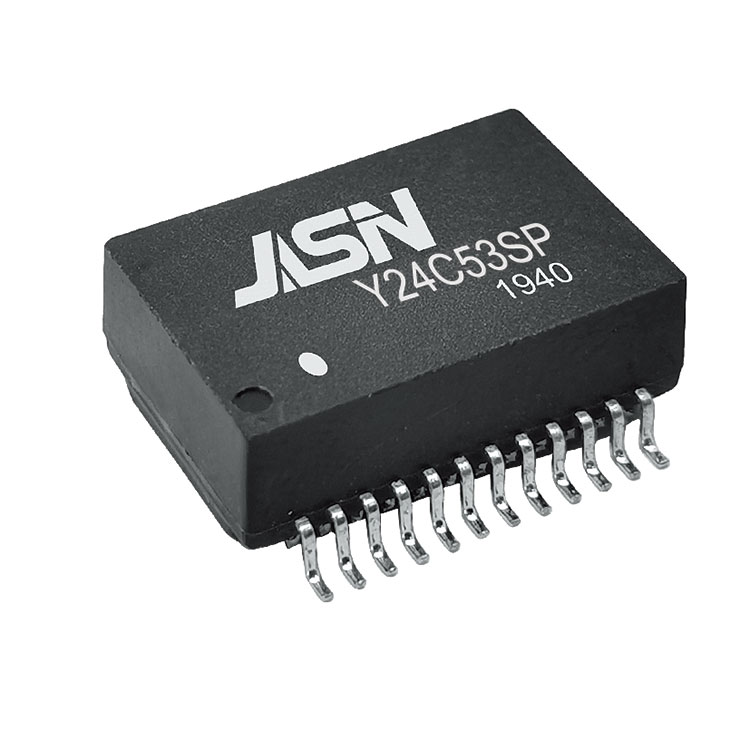

Model:Y24C53SP
Model:Y24C53SP
Send Inquiry
PDF DownLoad
JASN is a professional China 5GBase-T Lan Magnetics manufacturer and supplier, if you are looking for the best 5GBase-T Lan Magnetics with low price, consult us now!
Feature
Comply with IEEE802.3bz&at.
Comply with RoHS requirements.
Suitable for End-span PoE applications with 720mA current capability
Operating temperature range: 0 to ℃ 70℃.
Storage temperature range: -25 to ℃ 105℃
Electrical Specifications @ 25℃
|
OCL: |
180uH Min. @100KHz/0.1V with 8mA DC Bias |
|
Hi-Pot : |
1500Vrms |
|
Turns Ratio: |
1CT:1CT±3% |
|
D.C.R: |
1.0 ohm Max |
|
Insertion Loss: |
-1.0dB Max@1-100MHz |
|
-2.0dB Max@100-250MHz |
|
|
Return Loss: |
-16dB Min @1-40MHz |
|
-16+10log(f/40)dB Min@40-250MHz |
|
|
Cross Talk : |
-30dB Min@1-125MHz |
|
-25dB Min@125-250MHz |
|
|
CMRR: |
-30dB Min@1-125MHz |
|
-25dB Min@125-250MHz |
