1000Base-T Magnetics Modules
1000Base-T Magnetics Modules
Jansum is China manufacturer & supplier who mainly produces 1000MBase-T Magnetics Modules with many years of experience. Hope to build business relationship with you.
Our 1000 Base-T product designed to meet IEEE 802.3abstandard Compatible with all Major PHYs apply on Giga bits LAN speed RoHS peak reflow temperature 260C, or wave solder process 260+/-5C for 10 Sec. Standard footprint on most PCB space application.
MeetIEEE 802.3AF/AT/BT Standard(Different PoE Parameters).
Jansum’s PoE product portfolio can provide 2P/4P PoE/PoE+/PoE++ capable up to 100W Max.
|
Part Number |
Product Figure |
Speed Rate |
Number of Ports |
Package |
Number of Pins |
Pin Pitch |
PoE Rating |
Operating Temperature |
Hi-pot Rating |
Drawing |
| G24C03S |
|
1000 | SINGLE | SMD | 24Pin | 1.27mm | Non-PoE | 0℃to+70℃ | 1500V |
 PDF
|
| G24C02S |
|
1000 | SINGLE | SMD | 24Pin | 1.27mm | PoE15W | 0℃to+70℃ | 1500V |
PDF
|
| G24C02SP |
|
1000 | SINGLE | SMD | 24Pin | 1.27mm | PoE15W | 0℃to+70℃ | 1500V |
PDF
|
| G24C02SWU |
|
1000 | SINGLE | SMD | 24Pin | 1.27mm | 4PPoE60W | -40℃to+85℃ | 1500V |
PDF
|
| G24C22SQ |
|
1000 | SINGLE | SMD | 24Pin | 1.27mm | 4PPoE60W | -40℃to+85℃ | 1500V |
PDF
|
| G24C28SQ |
|
1000 | SINGLE | SMD | 24Pin | 1.27mm | 4PPoE60W | -40℃to+85℃ | 1500V |
PDF
|
| G24C02SH |
|
1000 | SINGLE | SMD | 24Pin | 1.27mm | PoE15W | 0℃to+70℃ | 5000V |
PDF
|
| G48C04S |
|
1000 | DUAL | SMD | 48Pin | 1.02mm | Non-PoE | 0℃to+70℃ | 1500V |
PDF
|
| G48C01S |
|
1000 | DUAL | SMD | 48Pin | 1.02mm | PoE15W | 0℃to+70℃ | 1500V |
PDF
|
| G48C01SP |
|
1000 | DUAL | SMD | 48Pin | 1.02mm | PoE15W | 0℃to+70℃ | 1500V |
PDF
|
| G48C07SP |
|
1000 | DUAL | SMD | 48Pin | 1.02mm | 4PPoE30W | 0℃to+70℃ | 1500V |
PDF
|
| G48C03SQ |
|
1000 | DUAL | SMD | 48Pin | 1.02mm | 4PPoE30W | -40℃to+85℃ | 1500V |
PDF
|
| G48C15SQ |
|
1000 | DUAL | SMD | 48Pin | 1.02mm | 4PPoE60W | -40℃to+85℃ | 1500V |
PDF
|
| G48C22S |
|
1000 | DUAL | SMD | 48Pin | 1.02mm | PoE15W | 0℃to+70℃ | 1500V |
PDF
|
| G50C01S |
|
1000 | DUAL | SMD | 50Pin | 1.02mm | PoE15W | 0℃to+70℃ | 1500V |
PDF
|
| G50C01SQ |
|
1000 | DUAL | SMD | 50Pin | 1.02mm | 4PPoE30W | -40℃to+85℃ | 1500V |
PDF
|
| G50C01SP |
|
1000 | DUAL | SMD | 50Pin | 1.02mm | 4PPoE30W | 0℃to+70℃ | 1500V |
PDF
|
| G50C01SW |
|
1000 | DUAL | SMD | 50Pin | 1.02mm | 4PPoE30W | -40℃to+85℃ | 1500V |
PDF
|
| G24P02SW |
|
1000 | SINGLE | PCMCIA | 24Pin | 1.00mm | Non-PoE | -40℃to+85℃ | 1500V |
PDF
|
| G24P02S |
|
1000 | SINGLE | PCMCIA | 24Pin | 1.00mm | Non-PoE | 0℃to+70℃ | 1500V |
PDF
|
| G24P03S |
|
1000 | SINGLE | PCMCIA | 24Pin | 1.27mm | Non-PoE | 0℃to+70℃ | 1500V |
PDF
|
| G24P09S |
|
1000 | SINGLE | PCMCIA | 24Pin | 1.27mm | Non-PoE | 0℃to+70℃ | 1500V |
PDF
|
| G24P10S |
|
1000 | SINGLE | PCMCIA | 24Pin | 1.27mm | Non-PoE | 0℃to+70℃ | 1500V |
PDF
|
| G24P12S |
|
1000 | SINGLE | PCMCIA | 24Pin | 1.27mm | Non-PoE | 0℃to+70℃ | 1500V |
PDF
|
| G24P70S |
|
1000 | SINGLE | PCMCIA | 24Pin | 0.99mm | Non-PoE | 0℃to+70℃ | 1500V |
PDF
|
| G24T01D |
|
1000 | SINGLE | DIP | 24Pin | 2.00mm | PoE15W | 0℃to+70℃ | 1500V |
PDF
|
| G24T01DP |
|
1000 | SINGLE | DIP | 24Pin | 2.00mm | PoE15W | -40℃to+85℃ | 1500V |
PDF
|
| G36T03D |
|
1000Base-T | DUAL | DIP | 36Pin | 1.78mm | PoE15W | 0℃to+70℃ | 1500V |
PDF
|
| G48T01D |
|
1000Base-T | DUAL | DIP | 48Pin | 2.00mm | PoE15W | 0℃to+70℃ | 1500V |
PDF
|
| G48T02D |
|
1000Base-T | DUAL | DIP | 48Pin | 2.00mm | PoE15W | 0℃to+70℃ | 1500V |
PDF
|
| G48T01DP |
|
1000Base-T | DUAL | DIP | 48Pin | 2.00mm | PoE15W | 0℃to+70℃ | 1500V |
PDF
|
| G72T13DQ |
|
1000Base-T | QUAD | DIP | 72Pin | 1.78mm | Non-PoE | -40℃to+85℃ | 1500V |
PDF
|
| G72T02D |
|
1000Base-T | QUAD | DIP | 72Pin | 1.78mm | Non-PoE | 0℃to+70℃ | 1500V |
PDF
|
| G72T07DB |
|
1000Base-T | QUAD | DIP | 72Pin | 1.78mm | Non-PoE | 0℃to+70℃ | 1500V |
PDF
|
| G72T07DH |
|
1000Base-T | QUAD | DIP | 72Pin | 1.78mm | Non-PoE | -40℃to+85℃ | 6000V |
PDF
|
| G72T10DH |
|
1000Base-T | QUAD | DIP | 72Pin | 1.78mm | Non-PoE | 0℃to+70℃ | 6000V |
PDF
|
| G96T01D |
|
1000Base-T | QUAD | DIP | 96Pin | 2.00mm | 4PPoE30W | 0℃to+70℃ | 1500V |
PDF
|
| G96T03DP |
|
1000Base-T | QUAD | DIP | 96Pin | 1.80mm | 4PPoE30W | 0℃to+70℃ | 1500V |
PDF
|
| G96T01DP |
|
1000Base-T | QUAD | DIP | 96Pin | 2.00mm | 4PPoE30W | 0℃to+70℃ | 1500V |
PDF
|
| G96T12DU |
|
1000Base-T | QUAD | DIP | 96Pin | 2.00mm | 4PPoE100W | -40℃to+85℃ | 1500V |
PDF
|
- View as
HDBaseT Compliant
You are welcomed to come to JASN factory to buy the latest selling, low price, and high-quality 1000Base-T Transformer. We look forward to cooperating with you.This G96T01D is HDBaseT Compliant product.
Model:G96T01D

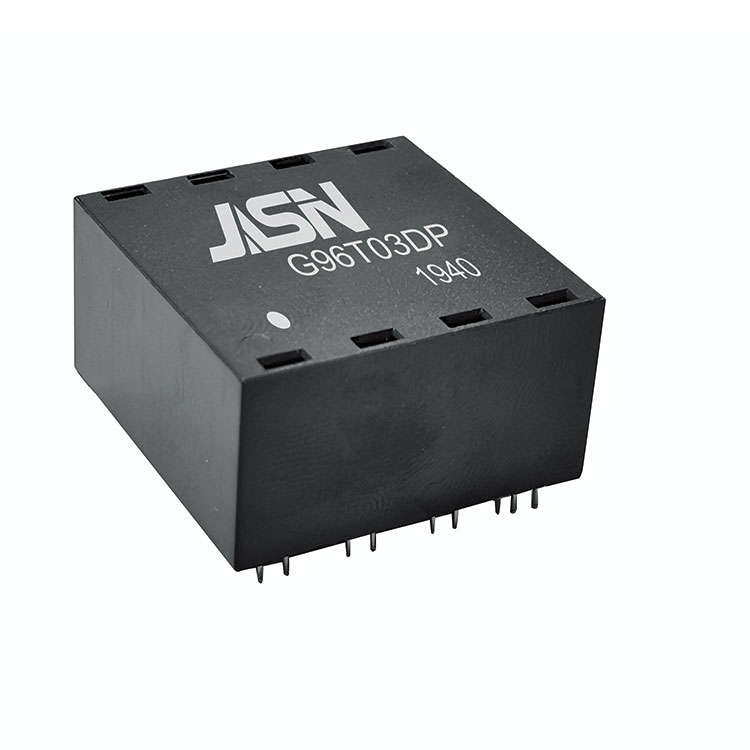

Lan PoE Modules
Our Lan PoE Modules offers perfect functions and superior performance. G96T03DP is compliant with IEEE 802.3ab standard and support Quad port 1000MBase-T application.
Model:G96T03DP

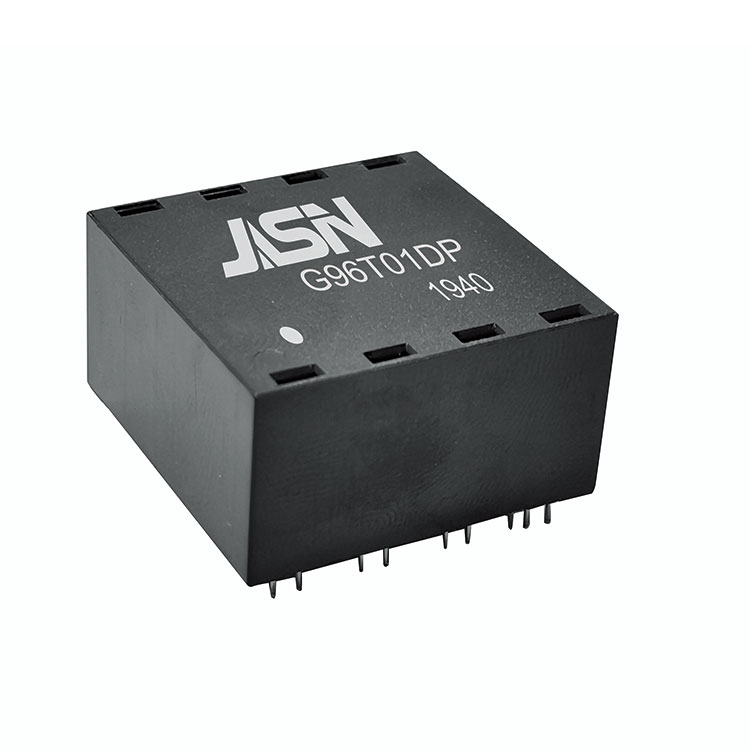

UPoE applications
You can buy JASN factory price Pulse Transformer from a reliable China Pulse Trans former manufacturer. PN G96T01DP is Rohs compliant and for UPoE applications.
Model:G96T01DP
IoT Application
JASN is China manufacturer & supplier who mainly produces Lan Transformer with many years of experience for IoT Application. PN G96T12DU can support Quad channel 1000M application.
Model:G96T12DU
JASN is one of the professional 1000Base-T Magnetics Modules manufacturers and suppliers in China. Welcome to buy newest 1000Base-T Magnetics Modules from our factory. Our products are of high quality and offer cheap quotations, free samples and customized services are also available.
