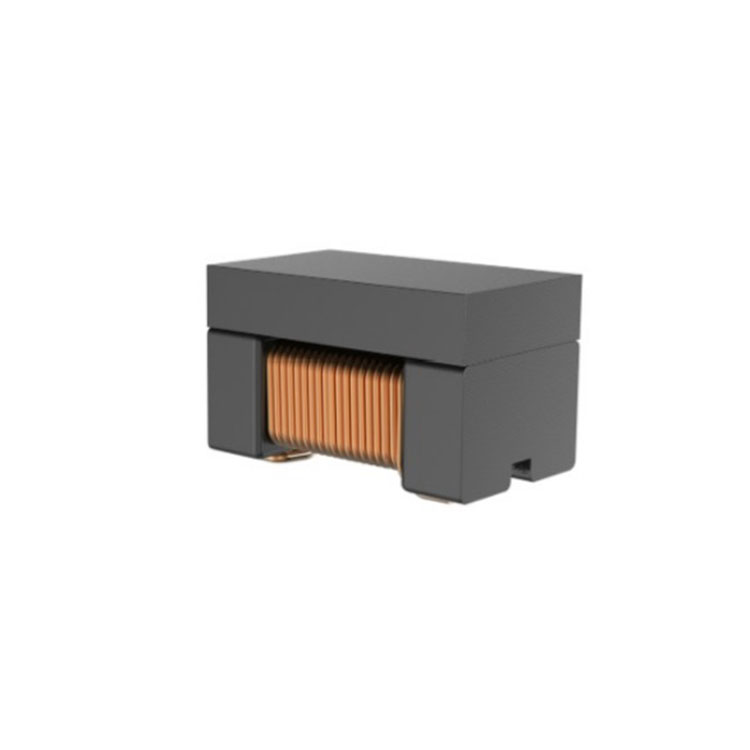

Inductance Approach Solution

Buy Discount Inductance Approach Solution with Free Sample made in China. JASN is a large-scale Inductance Approach Solution manufacturer and supplier in China.

Model:G4732C01

Model:G4732C01

You can rest assured to buy customized Inductance Approach Solution from JASN. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

Inductance Approach Solution

Feature

Compliant with IEEE 802.3ab standard.
Comply with RoHS requirements.
Comppliant with Halogen Free requirement.
Operating temperature range: -40℃ to +125℃.
Support LAN interface for network equipment, communication equipment, digital appliances, etc.

Electrical Specifications @ 25℃

OCL:	350uH Min. @100KHz/0.1V with 8mA DC Bias
Hi-POT :	1500Vrms
Turn Ratio:	1:1±5%
LK:	0.5uH Max @100KHz/0.2V
Cw/w	35pF Max @100KHz/0.2V
Insertion Loss:	1-80MHz: -0.8dB Max
	80-125MHz: -1.0dB Max
Return Loss:	1-30MHz	40MHz	50MHz	60-80MHZ	80-100MHZ
	-18dB Min	-14.4dB Min	-13.1dB Min	-12dB Min	-10dB Min
