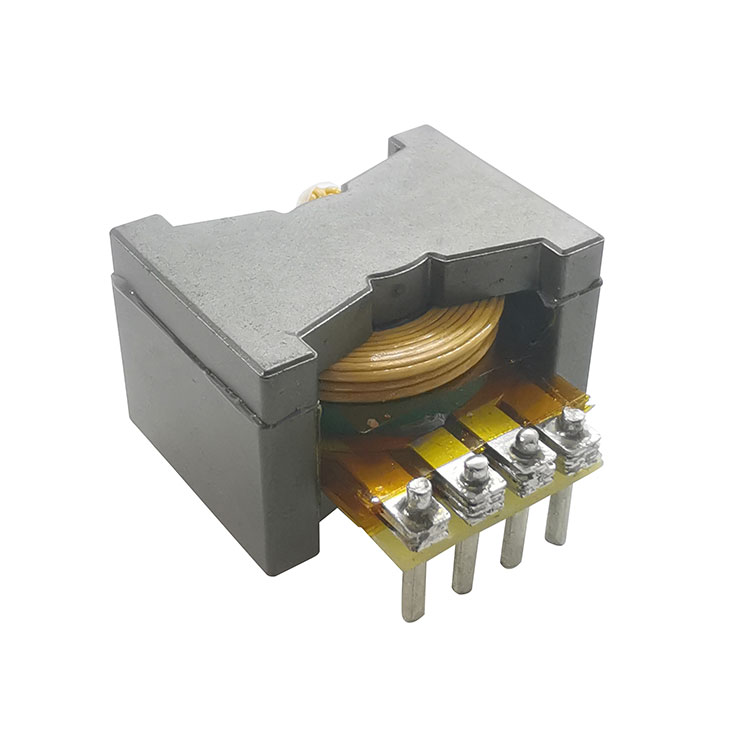

High Frequency Planar Transformer
  • High Frequency Planar Transformer - 0 High Frequency Planar Transformer - 0

High Frequency Planar Transformer

High quality High Frequency Planar Transformer is offered by China manufacturer JASN. Buy High Frequency Planar Transformer which is of high quality directly with low price.

Model:PQ35-001D

Model:PQ35-001D

Send Inquiry

PDF DownLoad

JASN is a leading China High Frequency Planar Transformer manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our High Frequency Planar Transformer have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you.


High Frequency Planar Transformer


Feature


Comply with RoHS requirements.
Operating temperature range:-40℃ to +125℃.
Storage temperature range: -40℃ to +125℃.

Electrical Specifications @ 25℃



OCL:

Pin 1-2= 70uH±10%. @100KHz/1V

LK:

Pin 1-2(short 3.4.5)= 9.0uH±15% 100KHz 1V

Turn Ratio:

8:1:1 ±3%. @20KHz/1.0V


DCR:

1-2: 16mΩ Max.

3-6=4-5: 0.4mΩ Max.



Hi-POT :

PRI--SEC: 2000V AC/3mA/ 6S.

PRI--CORE: 1000V AC/3mA/ 6S.

SEC--CORE: 500V AC/3mA/ 6S.
