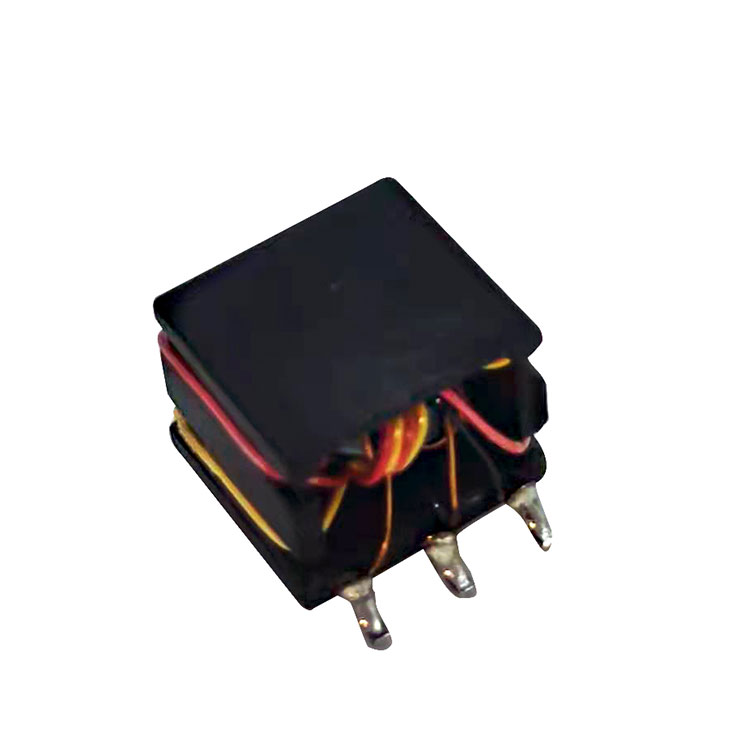

Automotive Magnetic Components

JASN is a leading China Automotive Magnetic Components  manufacturer, supplier and exporter.Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. Of course, also essential is our perfect after-sales service.

Feature

Comply with RoHS requirements.
Operating temperature range: -40℃ to +125℃.
Storage temperature range: -40℃ to +125℃.
Current Rating: 350mA AC,
Voltage-TIME: 11VuS.

Electrical Specifications @ 25℃

OCL:	(1-3)= 340uH Min. @100KHz/0.1V
Hi-Pot :	6250VAC 1mA 1Sec
Turns Ratio:	(6-4): (1-3)2CT:1 CT±2%
DCR:	(1-3): 0.436ohm Max
	(6-4) : 0.581hm Max
INTERWINDING CAPACITANCE:	(1-6): 5.5pF Typ   100KHz/10mV
