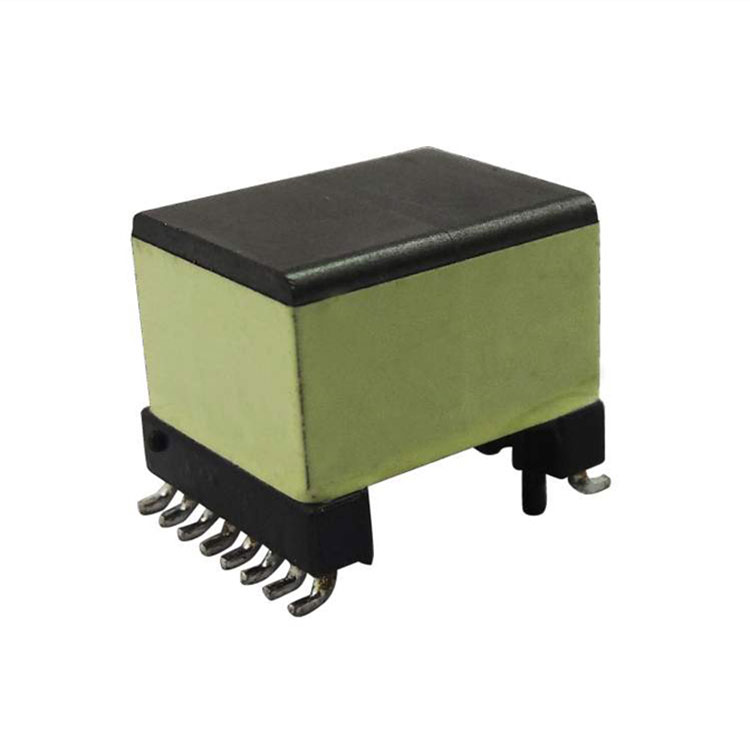

ADSL Transformer

As a professional ADSL Transformer manufacturer, you can rest assured to buy ADSL Transformer from JASN factory and we will offer you the best after-sale service and timely delivery.

Model:PEP1302-002

Model:PEP1302-002

Send Inquiry

Factory Directly Supply Quality ADSL Transformer made in China. JASN is a ADSL Transformer manufacturer and supplier in China.


Feature


Comply with RoHS requirements.
Operating temperature range:-40℃ to +125℃.
Storage temperature range: -40℃ to +125℃.

Electrical Specifications @ 25℃



OCL:

Pin(5-3) = 37uH±10%. @100KHz/0.1V.

Turn Ratio:

Pin(5-3) PIN(2-1) PIN(6.7-9.10)   =2:1.1:1±3%. @20KHz/1.0V

LK:

Pin(5-3) with short(1,2,6,7,9,10) =0.75uH Max @100KHz/0.1V.





D.C.R:

Pin(5-3) =89mΩ Max.

Pin(2-1) =155mΩ Max.

Pin(6,7-9,10) =28mΩ Max.

Hi-POT :

PRI--SEC: 1500VAC/1mA/ 3S.
