What is a Toroidal Inductor and Why It Matters in Modern Electronics?

Toroidal inductors are one of the most efficient and widely used passive components in modern electronic systems. Their unique ring-shaped core design provides superior magnetic containment, reduced electromagnetic interference, and high energy efficiency compared to traditional inductors. This article explores what a toroidal inductor is, how it works, why it is essential in power electronics, and how to select the right type for different applications. It also highlights common challenges, real-world applications, and practical design considerations to help engineers, buyers, and product developers make informed decisions.

Table of Contents

• 1. Understanding Toroidal Inductor Basics
• 2. How a Toroidal Inductor Works
• 3. Key Advantages Over Conventional Inductors
• 4. Core Materials and Their Impact
• 5. Real-World Applications
• 6. How to Select the Right Toroidal Inductor
• 7. Common Problems and Troubleshooting
• 8. Toroidal vs Other Inductor Types
• 9. Design Considerations for Engineers
• 10. Future Trends in Inductor Technology
• 11. Frequently Asked Questions
• 12. Conclusion
• 13. Manufacturer Information & Contact

1. Understanding Toroidal Inductor Basics

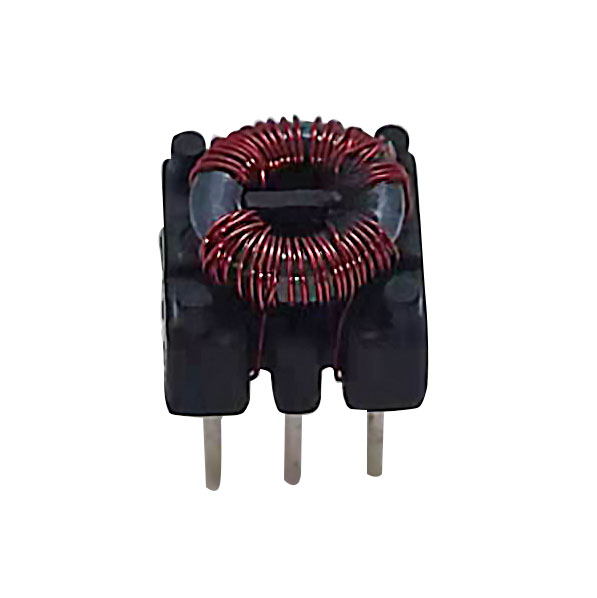

A toroidal inductor is a type of inductor shaped like a doughnut or ring (toroid). It consists of a circular magnetic core wrapped with copper wire. When electric current flows through the wire, a magnetic field is generated within the core, storing energy in the form of magnetism.

Unlike traditional solenoid inductors, the magnetic field in a toroidal design is largely confined within the core. This unique property significantly reduces energy loss and electromagnetic interference (EMI), making it ideal for high-performance electronic circuits.

In simple terms, a toroidal inductor is designed to:

• Store energy in a magnetic field
• Filter electrical noise
• Stabilize current flow in circuits

2. How a Toroidal Inductor Works

The working principle of a toroidal inductor is based on electromagnetic induction. When alternating current (AC) flows through the coil, it generates a changing magnetic field in the toroidal core. This changing field induces an opposing voltage, known as inductance.

The closed-loop shape of the core ensures that most of the magnetic flux remains inside the material, reducing leakage and improving efficiency.

Key working stages include:

1. Current flows through the winding
2. Magnetic field forms inside the toroid
3. Energy is stored in magnetic flux
4. Opposition to current change stabilizes circuit behavior

This controlled energy storage and release is what makes toroidal inductors essential in power regulation systems.

3. Key Advantages Over Conventional Inductors

Toroidal inductors are preferred in many industries due to their superior electrical and physical properties. Below are the main advantages:

• High Efficiency: Reduced energy loss due to minimal leakage flux.
• Low Electromagnetic Interference: Magnetic field is contained within the core.
• Compact Design: Higher inductance in a smaller physical size.
• Better Thermal Performance: Lower heat generation under load.
• Strong Magnetic Coupling: Efficient energy transfer between windings.

These advantages make toroidal inductors particularly useful in power supplies, audio equipment, and industrial electronics.

4. Core Materials and Their Impact

The performance of a toroidal inductor depends heavily on its core material. Different materials offer different magnetic properties and frequency responses.

5. Real-World Applications

Toroidal inductors are widely used across multiple industries due to their efficiency and reliability.

• Switch-mode power supplies (SMPS)
• Audio amplifiers and signal filtering
• Telecommunication equipment
• Electric vehicle power systems
• Renewable energy inverters (solar and wind)
• Industrial automation systems

In each of these applications, the ability to reduce EMI and improve energy efficiency plays a crucial role in system stability and performance.

6. How to Select the Right Toroidal Inductor

Choosing the correct toroidal inductor requires careful consideration of electrical and mechanical parameters.

Key selection factors include:

• Inductance Value: Must match circuit requirements
• Current Rating: Should handle peak and continuous current
• Core Material: Based on frequency and efficiency needs
• DC Resistance: Lower resistance improves efficiency
• Operating Frequency: Must align with system design

Engineers often balance size, cost, and performance when selecting components for optimized circuit design.

7. Common Problems and Troubleshooting

Despite their reliability, toroidal inductors may face certain operational challenges.

• Saturation: Occurs when current exceeds core limits
• Overheating: Caused by excessive current or poor ventilation
• Noise Issues: Often due to improper winding or shielding
• Mechanical Stress: Can damage windings during installation

Proper design and thermal management can significantly reduce these issues.

8. Toroidal vs Other Inductor Types

9. Design Considerations for Engineers

When integrating toroidal inductors into electronic systems, engineers must consider multiple design aspects:

• Winding density and insulation quality
• Thermal dissipation pathways
• Magnetic saturation thresholds
• PCB layout to reduce EMI coupling
• Mechanical mounting stability

A well-designed system ensures long-term reliability and optimal electrical performance.

10. Future Trends in Inductor Technology

The demand for compact, high-efficiency electronic systems continues to drive innovation in inductor technology. Future developments include:

• Advanced nanocrystalline materials for ultra-low loss performance
• Miniaturized high-frequency toroidal designs
• Integration with smart power modules
• Improved thermal-resistant winding materials

These advancements will support next-generation applications such as electric mobility, smart grids, and AI-driven industrial systems.

11. Frequently Asked Questions

Q1: What makes toroidal inductors more efficient?
Their closed-loop magnetic design minimizes flux leakage, improving efficiency.

Q2: Can toroidal inductors be used in high-frequency circuits?
Yes, especially when using ferrite or nanocrystalline cores.

Q3: Are toroidal inductors expensive?
They may cost slightly more than basic inductors but offer better performance and reliability.

Q4: What industries use toroidal inductors the most?
Power electronics, automotive, telecom, and renewable energy sectors.

Q5: How do I reduce noise in toroidal inductors?
Proper winding techniques, shielding, and correct material selection help reduce noise.

12. Conclusion

Toroidal inductors are a critical component in modern electronics, offering unmatched efficiency, compactness, and electromagnetic performance. Their ability to stabilize current and reduce interference makes them essential in everything from consumer electronics to advanced industrial systems. Understanding their structure, working principles, and selection criteria allows engineers and buyers to optimize system performance effectively.
