What Exactly is a 2.5GBase-T Lan Transformer and Why Do You Need It?

In the fast-evolving world of networking, speed is king. As we push beyond the standard 1 Gigabit per second (Gbps) towards multi-gigabit speeds, the underlying components that make it all possible become critically important. One such unsung hero is the 2.5GBase-T Lan Transformer. You might not see it, but it's working tirelessly behind the scenes in your network equipment to ensure a stable, high-speed connection. At Jansum Electronics Dongguan Co., Ltd., with over two decades of engineering excellence, we specialize in crafting these vital components to the highest standards. This article dives deep into what a 2.5GBase-T Lan Transformer is, its key parameters, and why choosing the right one is paramount for your next-generation networking applications.

Understanding the Core Function

A 2.5GBase-T Lan Transformer, often called a network transformer or magnetics module, is a key component embedded in the Ethernet port of any device supporting 2.5 Gigabit Ethernet (2.5GBE). Its primary roles are:

• Signal Isolation: It electrically isolates the sensitive PHY (Physical Layer) chip from the Ethernet cable, protecting your expensive hardware from voltage surges, static discharge, and potential ground loops.

• Impedance Matching: It ensures the signal integrity is maintained by matching the impedance between the chip and the twisted-pair cable, minimizing signal reflections and data errors.

• Common-Mode Noise Rejection: It filters out electromagnetic interference (EMI), ensuring a clean and reliable data signal, which is crucial for achieving high speeds over copper cables.

Without a high-quality transformer, your 2.5GBE connection would be prone to dropouts, errors, and hardware damage.

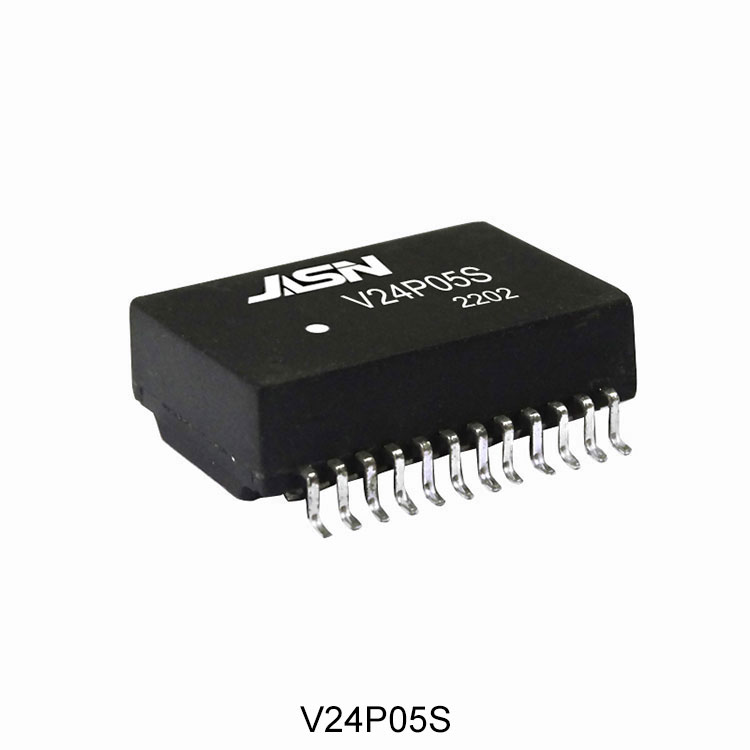

Key Product Parameters of Our 2.5GBase-T Lan Transformer

At Jansum Electronics, we engineer our transformers with precision to meet the rigorous demands of modern networking. Here are the detailed specifications that set our products apart.

Detailed Parameter List:

• Standard Compliance: Fully compliant with IEEE 802.3bz for 2.5GBASE-T operation.

• Data Rate: Supports 10/100/1000/2500 Mbps auto-negotiation.

• Circuit Configuration: 1:1 turns ratio CT (Center Tap) design.

• Isolation Voltage: Withstands a minimum of 1500 Vrms for superior safety.

• Operating Temperature Range: -40°C to +85°C, ensuring reliability in harsh environments.

• Common-Mode Choke: Integrated for excellent EMI suppression.

• Inductance: Meets or exceeds standard requirements for minimal insertion loss.

• Package: Compact, surface-mount (SMT) design for automated PCB assembly.

• Pin Count: Standard 16-pin or 24-pin configurations available.

• Construction: Shielded metal case for enhanced noise immunity.

For a quick overview, here is a summary table of our product's core electrical characteristics:

This combination of features ensures that our transformers deliver unmatched performance and reliability, making them the ideal choice for manufacturers of switches, routers, network interface cards, and other 2.5G equipment.

Why Choose Jansum Electronics' 2.5GBase-T Lan Transformer?

In a market flooded with alternatives, our products stand out due to our unwavering commitment to quality and performance. We don't just sell components; we provide networking solutions.

• Proven Reliability: Our transformers are subjected to a 100% automated final test and burn-in processes, guaranteeing they perform flawlessly from day one and for years to come.

• Superior Signal Integrity: Through meticulous design and high-quality core materials, we ensure minimal insertion loss and superior return loss, which directly translates to a more stable and faster network connection for the end-user.

• Robust Surge Protection: Our design prioritizes equipment safety, offering excellent isolation that shields your core circuitry from real-world electrical hazards.

• Global Compliance: Our components are designed to meet international EMC and safety standards, simplifying your product certification process for markets in North America, Europe, and Asia.

• Expert Support: When you partner with Jansum Electronics Dongguan Co., Ltd., you gain access to our team of seasoned engineers who can provide technical support and customization options to perfectly fit your design requirements.

2.5GBase-T Lan Transformer FAQ

1. Can a 2.5GBase-T Lan Transformer be used in a standard 1GBase-T application?

Yes, absolutely. A 2.5GBase-T Lan Transformer is designed to be backward compatible. It will function perfectly in 10Mbps, 100Mbps, and 1000Mbps (1Gbps) Ethernet applications. The transformer's electrical characteristics, such as its inductance and return loss, are engineered to cover the broader frequency spectrum required for 2.5Gbps, which fully encompasses the needs of lower-speed standards. This makes it a versatile and future-proof component for your designs.

2. What is the significance of the isolation voltage rating (e.g., 1500 Vrms)?

The isolation voltage rating is a critical safety parameter. It indicates the transformer's ability to withstand a high voltage potential between its primary (chip-side) and secondary (cable-side) windings without breaking down. A rating of 1500 Vrms means the transformer can protect your sensitive electronics from high-voltage transients that can be caused by lightning-induced surges, static discharge, or faults in power lines. This protection is essential for ensuring end-user safety and the long-term reliability of the networking equipment.

3. How does the common-mode choke within the transformer module improve performance?

The integrated common-mode (CM) choke is fundamental for electromagnetic compatibility (EMC). It acts as a filter that suppresses common-mode noise—unwanted electrical interference that appears identically on both signal lines of a pair. This noise can be generated internally by the device or picked up from the external environment. By effectively attenuating this noise, the CM choke prevents it from radiating from the cable (thus passing EMI regulations) and from interfering with the delicate differential data signal, resulting in a cleaner signal, fewer packet errors, and a more stable data link at high speeds.

Power Your Network with Confidence

The transition to multi-gigabit networking is no longer a question of "if" but "when." Ensuring your hardware is built with robust, reliable, and high-performance components is the key to success. The 2.5GBase-T Lan Transformer is a small part with a massive responsibility. Don't let an inferior component become the weakest link in your high-speed network chain.

At Jansum Electronics Dongguan Co., Ltd., we have invested years of research and precision engineering into developing our range of network transformers. We are committed to providing our clients with components that not only meet specifications but exceed expectations for durability and performance.

Contact Jansum Electronics today to request samples, discuss your specific requirements, or get a detailed quotation. Let us help you build a faster, more reliable future.
