1000M Lan Transformer
  • 1000M Lan Transformer - 0 1000M Lan Transformer - 0

1000M Lan Transformer

China JASN has been successful for many domestic and foreign company to provide advanced 1000M Lan Transformer, technical support and excellent after sales service. G48C01SP supports PoE option.

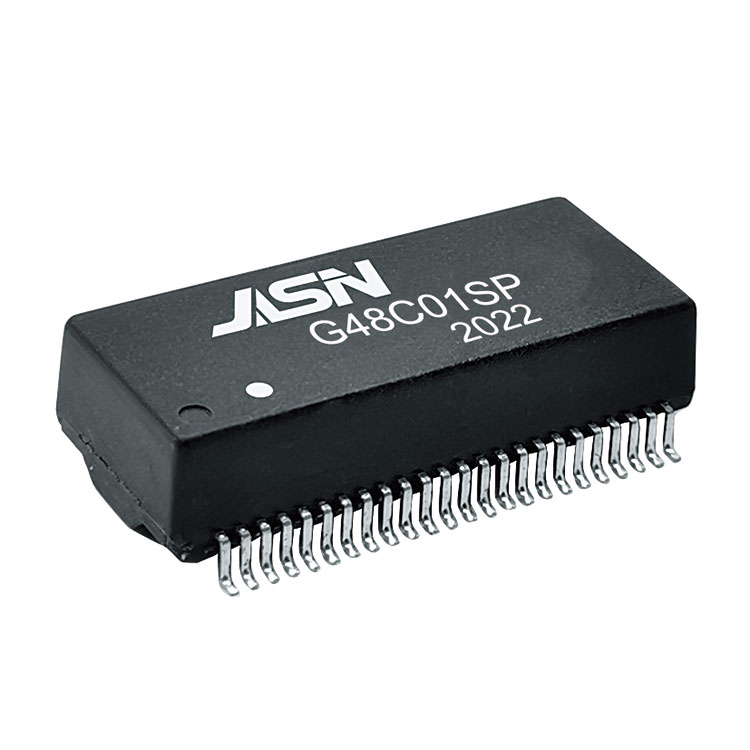

Model:G48C01SP

Model:G48C01SP

Send Inquiry

PDF DownLoad

JASN as one of the professional China 1000M Lan Transformer manufacturers and China factory, we are strong strength and complete management. Also, we have own exporting license. We mainly deal in making a series of 1000M Lan Transformer and so on. We stick to the principal of quality orientation and customer priority, we sincerely welcome your letters, calls and investigations for business cooperation.


Feature


Compliant with IEEE 802.3 standard.
Comply with ROHS requirements.
Suitable for End-span POE applications with 720mA current capability.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.


Electrical Specifications @ 25℃



OCL:

350uH Min. @100KHz/0.1V with 8mA DC Bias

Hi-POT :

1500Vrms

Turn Ratio:

1:1±3%

LK:

0.5uH Max @100KHz/0.2V

Cw/w

35PF Max @100KHz/0.2V

D.C.R:

1.2 ohm Max

Insertion Loss:

1-100MHz: -1.0dB Max

Cross Talk :

1-100MHz: -30dB Min



Return Loss:

1-30MHz

40MHz

50MHz

60-80MHZ

80-100MHZ

-18dB Min

-14.4dB Min

-13.1dB Min

-12dB Min

-10dB Min
